50124273

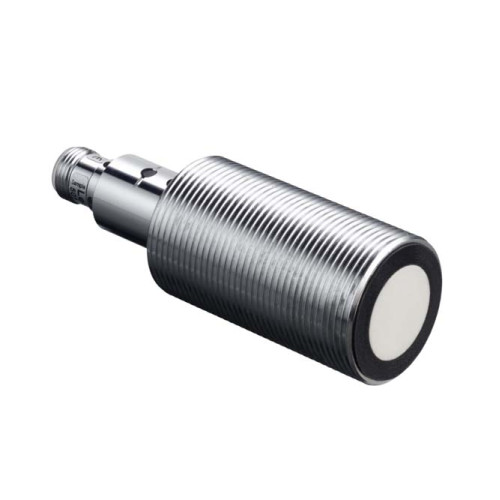

The Ultrasonic sensor from . Operating range: 0,3 ... 3 m; Opening angle: 15 °; Direction of beam: Front; Switching frequency:

Manufacturer's No: HTU430B-3000.X3/LT4-M12     Manufacturer: Leuze
The Ultrasonic sensor from . Operating range: 0,3 ... 3 m; Opening angle: 15 °; Direction of beam: Front; Switching frequency: 4 Hz; Supply voltage: 15 ... 30 V, DC; Digital switching outputs: 2 Pie

Availability On Request

£490.00
  • Special version with 2 independent switching outputs
  • Multiplex operation and synchronous operation
  • Operating range: 0.3 to 3 meters
  • Beam direction: Front with a 15° opening angle
  • Supply voltage: 15 to 30 volts DC
  • 2 digital switching outputs:
  • Switching output 1: Transistor, Push-pull, IO-Link, NC contact/NO contact
  • Switching output 2: Transistor, PNP, NC contact/NO contact
  • 1 input/output
  • Switching frequency: 4 Hz

Read more

  • Interface: IO-Link
  • Connection: 5-pin M12 connector
  • Design: Cylindrical M30 with dimensions of 30mm x 90mm
  • Housing material: Metal
  • Operational controls include control buttons

Accessories



Product

Manufacturer Material ID -
HTU430B-3000.X3/LT4-M12
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Material housing -
UN
Type of analogy output -
UN
Relative linearity deflection -
- Percentage
Material active area of sensor -
UN
AWG-number -
-
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Max. output current -
150 Milliampere
Blind zone -
300 Millimetre
Adjustable distance -
300 Millimetre
Measuring range length -
300 Millimetre
Thumbnail of product picture -
Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Other
Length of sensor -
90 Millimetre
Material of cable sheath -
Other
Maximum output current -
150 Milliampere
No load current -
50 Milliampere
Relative repeat accuracy -
0.15 Percentage
Setting procedure -
Manual adjustment
Standard for interfaces -
Other
Supply voltage -
15 Volt
Switching frequency -
4 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP/NPN
Voltage type -
DC
Leuze

Availability On Request

£490.00
