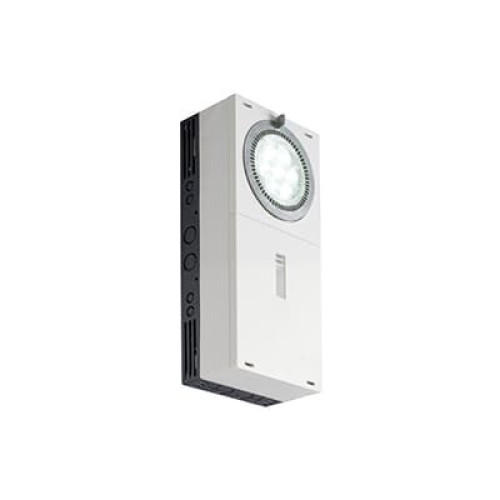

7TCA091720R0104

HY-LED 230V50HZ HF ESC PC IP65

Manufacturer's No: HY1LE2HF     Manufacturer: ABB
HY-LED 230V50HZ HF ESC PC IP65

Availability On Request

£431.32
  • Model: HY-LED 230V50HZ HF ESC PC IP65
  • LED Luminaire: HyLED
  • Input Voltage: 220-240V AC/DC, 50-60Hz
  • Power: 7W
  • Luminous Flux: 1000 Lumens
  • Operating Voltage: 230V
  • Operating Temperature: 0-40°C
  • IP Rating: IP65


Product

Manufacturer Material ID -
HY1LE2HF
Net Weight -
2.65kg

Additional Product Information

Commodity Code -
9405606000
Country of Origin -
FR
UNSPSC -
39101600

Technical Specification

Lamp included -
Monitoring equipment -
None
Colour temperature -
6000 Kelvin
Connection type -
Other
Control gear -
LED driver constant current
Cover material -
Plastic matt/satinised
Degree of protection (IP rating) -
IP65
Function -
Escape route lighting
Height/depth -
95 Millimetre
Housing colour -
White
Housing material -
Plastic
Impact resistance (IK rating) -
IK08
Length -
326 Millimetre
Light distribution -
Diffuser
Light source included -
Light source type -
LED non-replaceable
Luminous flux in standby mode -
1000 Lumen
Maximum system power -
14 Watt
Mounting method -
Wall surface mounted / ceiling surface mounting
Nominal voltage -
207 Volt
Number of lighting heads -
1
Power factor -
0.9
Power supply system -
Central (central battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
-25 Degrees celsius
Type of cabling -
Suitable for through wiring
Voltage type -
AC/DC
Width -
143 Millimetre
ABB

Availability On Request

£431.32
