1SAM201911R1010

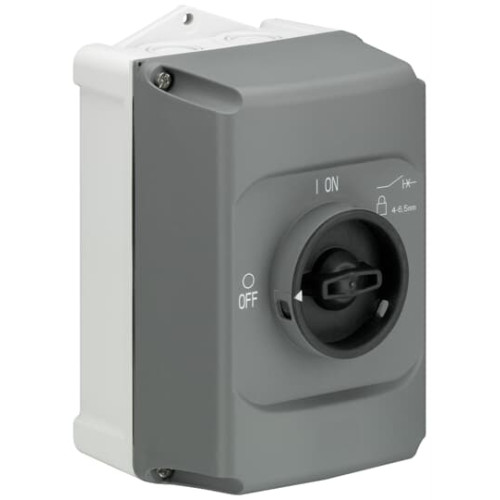

IB132-G Enclosure, GY/BK, IP65 Standard version, 3 times lockable

Manufacturer's No: IB132-G     Manufacturer: ABB
IB132-G Enclosure, GY/BK, IP65 Standard version, 3 times lockable

Availability On Request

£34.65
IB132-G enclosure is suitable for manual motor starter MS116/MS132. The combination of manual motor starter and enlcosure allows to setup all required control and protection functions for single machine installations. The enclosure has a IP65 degree of protection. Additional mounting of auxiliary and signalling contacts, shunt trips and undervoltage release is possible. The handle is up to 3-times lockable in OFF position.


Product

Manufacturer Material ID -
IB132-G
Net Weight -
0.37kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Material housing -
Plastic
Degree of protection (IP) -
IP65
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
12
Depth -
119 Millimetre
Height -
194 Millimetre
Housing material -
Plastic
Model -
Surface mounting
Width -
118 Millimetre
