50108943

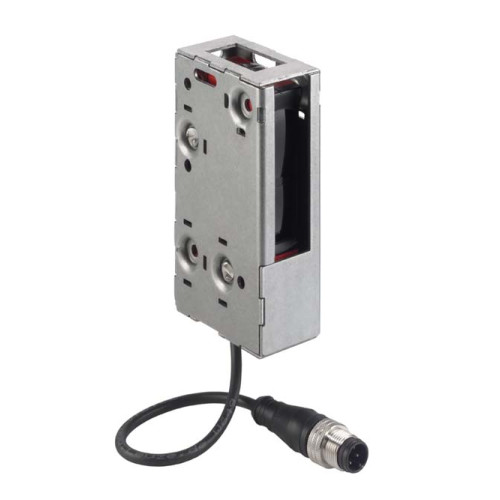

The Diffuse sensor with background suppression from . Operating range limit: 0 ... 2,5 m; Light source: LED, Infrared; Switching f

Manufacturer's No: IHRT 46B/4,200-S12 S-Ex n     Manufacturer: Leuze
The Diffuse sensor with background suppression from . Operating range limit: 0 ... 2,5 m; Light source: LED, Infrared; Switching frequency: 200 Hz; Supply voltage: 10 ... 30 V, DC; Digital switching

Availability Back Order

£266.00
  • Special version: Warning output, Ex-protected
  • Operating range limit: 0 to 2.5 m
  • Light source: LED, Infrared
  • Supply voltage: 10 to 30 V DC
  • Digital switching outputs: 2 pieces
  • Switching output 1: Transistor, PNP, Light switching
  • Switching output 2: Transistor, PNP, UB switching
  • Switching frequency: 200 Hz
  • Connection: Cable with connector, 200 mm, M12, Metal, 4-pin
  • Design: Cubic

Read more

  • Dimensions: 27.5 mm x 87 mm x 54 mm
  • Housing material: Plastic
  • Operational controls: Multiturn potentiometer
  • Ambient temperature, operation: -30 to 60 °C
  • Ex device category: 3
  • Degree of protection: IP 67

Accessories



Product

Manufacturer Material ID -
IHRT 46B/4,200-S12 S-Ex n
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Max. output current -
- Milliampere
Adjustment range -
- Millimetre
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Light dot -
- Square millimetre
Min. reflector distance -
- Millimetre
Time of reaction -
- Millisecond
Transmission range of the safety field -
- Metre
Type of safety acc. IEC 61496-1 -
UN
Material of cable sheath -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Max. switching distance -
- Millimetre
Rated switching distance -
- Millimetre
Material housing -
Plastic
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-30 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height of sensor -
87 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
54 Millimetre
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Maximum output current -
0 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operating distance -
0 Millimetre
Operation agent-safety class -
Safety class 2
Rated control supply voltage at DC -
10 Volt
Reaction time -
0 Millisecond
Sensing mode -
Light switching
Setting procedure -
Manual adjustment
Switching frequency -
200 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Triangulation -
Background fade-out
Type of electric connection -
Cable with connector
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
0 Nanometre
Width sensor -
27.5 Millimetre
