50034510

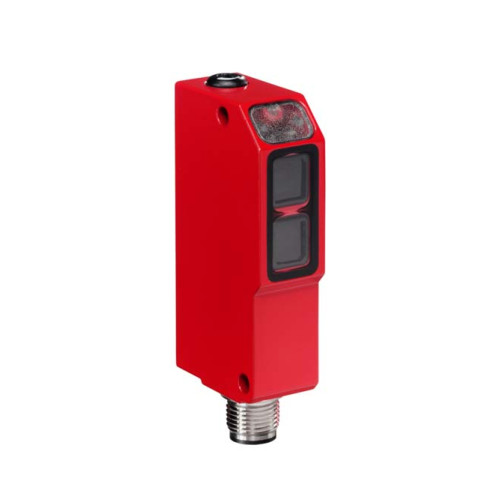

The Throughbeam photoelectric sensor receiver from . Switching frequency: 1.000 Hz; Supply voltage: 10 ... 30 V, DC; Digital switc

Manufacturer's No: ILSR 95/44 E-L.1     Manufacturer: Leuze
The Throughbeam photoelectric sensor receiver from . Switching frequency: 1.000 Hz; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 3 Piece(s); Digital switching output 1: Transistor, PN

Availability Back Order

£269.00
  • Special version: Warning output
  • Supply voltage: 10-30 V DC
  • Digital switching outputs: 3 pieces
  • Switching output 1: Transistor, PNP, Light switching
  • Switching output 2: Transistor, PNP, Dark switching
  • Switching output 3: Transistor, PNP, UB switching
  • Switching frequency: 1,000 Hz
  • Connection: M12 Stainless steel 5-pin connector
  • Design: Cubic housing
  • Dimensions: 17 mm x 66 mm x 35 mm

Read more

  • Housing material: Metal
  • Ambient temperature, operation: -25 to 60 °C
  • Degree of protection: IP 67

Accessories

Others



Product

Manufacturer Material ID -
ILSR 95/44 E-L.1
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Opening angle -
- Degrees
Number of contact energized outputs with signalling function -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Setting procedure -
UN
Type of light -
UN
Light dot -
- Square millimetre
Min. reflector distance -
- Millimetre
Transmission range of the safety field -
- Metre
Type of safety acc. IEC 61496-1 -
UN
Wavelength of the sensor -
- Nanometre
Material of cable sheath -
UN
Degree of protection (IP) -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Max. switching distance -
- Millimetre
Rated switching distance -
- Millimetre
Degree of protection (NEMA) -
UN
Max. output current -
100 Milliampere
Material housing -
Metal
Time of reaction -
5 Millisecond
Thumbnail of product picture -
Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
66 Millimetre
Housing material -
Metal
Laser protection class -
None
Length of sensor -
35 Millimetre
Material of optical surface -
Glass
Max. output current at protected output -
0 Milliampere
Maximum output current -
100 Milliampere
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
3
Operation agent-safety class -
Safety class 2
Rated control supply voltage at DC -
10 Volt
Reaction time -
0.5 Millisecond
Scope of delivery of the one-way system -
Receiver
Sensing mode -
Light switching
Switching frequency -
1000 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Type of electric connection -
Connector M12
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
17 Millimetre
