7541190

Isolating switching amplifier, 4-channel

Manufacturer's No: IM1-451-R     Manufacturer: Turck Banner
Isolating switching amplifier, 4-channel

Availability On Request

£380.58
  • Isolating switching amplifier
  • 4-channel
  • Operating voltage: 20-250 VAC / 20-250 VDC
  • 5 relay outputs (NO)
  • Output mode adjustable (NO/NC mode)
  • Input circuits monitored for wire-break/short-circuit (ON/OFF switchable)
  • Common alarm output
  • Complete galvanic isolation
  • Input reverse-polarity protected
  • TR CU


Product

Manufacturer Material ID -
IM1-451-R
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Degree of protection (IP rating) -
IP20

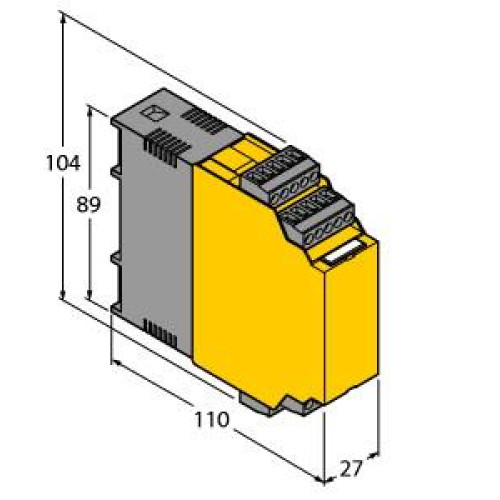

Depth -
104 Millimetre
Height -
110 Millimetre
Mounting method -
Snap mounting support rail
Number of inputs, according to NAMUR -
4
Operating temperature -
-25 Degrees celsius
Power consumption -
3 Watt
Rated operation frequency -
40 Hertz
Rated supply voltage at AC -
20 Volt
Rated supply voltage at DC -
20 Volt
Switching current -
2 Ampere
Switching frequency -
10 Hertz
Switching voltage -
250 Volt
Type of electric connection -
Screw connection
Width -
27 Millimetre
Turck Banner

Availability On Request

£380.58
