7560015 {T}

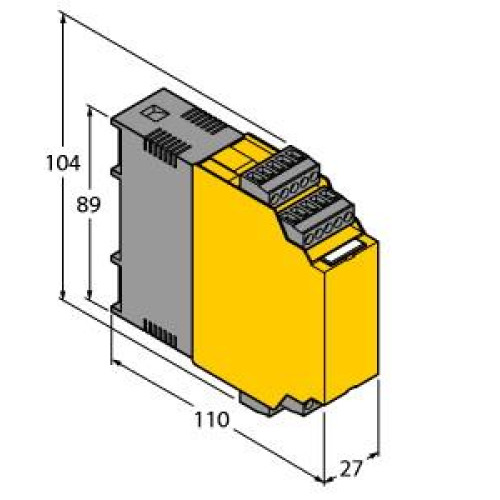

Isolating transducer, 1-channel, Operating voltage 20…250 VAC / 20

Manufacturer's No: IM33-14EX-CDRI     Manufacturer: Turck Banner
Isolating transducer, 1-channel, Operating voltage 20…250 VAC / 20

Availability Available to order

POA
  • Isolating transducer for monitoring analog values and ranges
  • 1-channel with universal operating voltage: 20-250 VAC / 20-125 VDC
  • Parameterized via PC (FDT/DTM), front-panel switch, or HART
  • Ring buffer stores up to 8000 measured values
  • Supports 2 and 3-wire measuring transducers
  • Output circuit: 0/4-20 mA, reversible; 3 relay outputs
  • Suitable for active and passive signals
  • Complete galvanic isolation with input reverse-polarity protection
  • ATEX, IECEx, TR CU, KOSHA certified for installation in zone 2


Product

Manufacturer Material ID -
IM33-14EX-CDRI
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
UNSPSC -
39121521

Technical Specification

Construction type of device -
Built-in device
Degree of protection (IP rating) -
IP20
Depth -
104 Millimetre
Height -
110 Millimetre
Load -
600 Ohm
Mounting method -
Snap mounting support rail
Operating temperature -
-25 Degrees celsius
Power consumption -
3 Watt
Rated operation frequency -
40 Hertz
Rated supply voltage at AC -
20 Volt
Rated supply voltage at DC -
20 Volt
Switching frequency -
10 Hertz
Temperature drift -
0.0025 Temperature coefficient
Type of electric connection -
Screw connection
Width -
27 Millimetre
