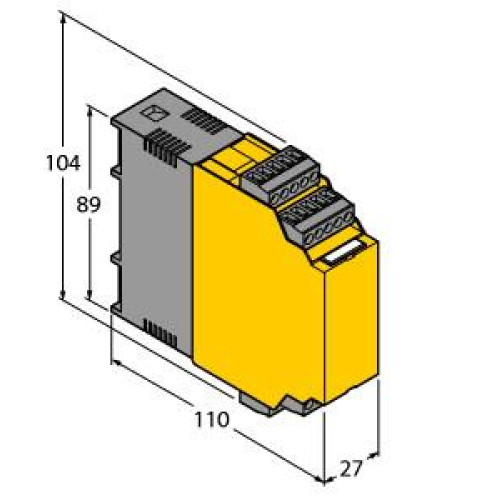

Trip amplifier, 1-channel

Manufacturer's No: IM43-14-SRI     Manufacturer: Turck Banner
Trip amplifier, 1-channel

Availability On Request

£337.50
  • Trip amplifier for monitoring 3 limit values at a current or voltage input
  • Operating voltage: 20-250 VAC / 20-250 VDC
  • Input circuit: 0/4-20 mA; 0/2-10 V
  • Output circuit: 0/4-20 mA
  • Power supply for 2-wire or 3-wire transmitters/sensors
  • 3 independent limit value relays
  • Limit value relay adjusted via TEACH button
  • Relay outputs adjusted via front buttons
  • Complete galvanic isolation
  • Input reverse-polarity protection

Read more

  • Universal operating voltage
  • Compliance with CFMUS, TR CU regulations


Product

Manufacturer Material ID -
IM43-14-SRI
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Construction type of device -
Built-in device
Degree of protection (IP rating) -
IP20
Depth -
104 Millimetre
Height -
110 Millimetre
Load -
600 Ohm
Mounting method -
Snap mounting support rail
Number of input ranges 0 mA ... 20 mA -
1
Number of input ranges 0 V ... 10 V -
1
Number of input ranges 2 V ... 10 V -
1
Number of input ranges 4 mA ... 20 mA -
1
Operating temperature -
-25 Degrees celsius
Power consumption -
5 Watt
Rated operation frequency -
40 Hertz
Rated supply voltage at AC -
20 Volt
Rated supply voltage at DC -
20 Volt
Switching frequency -
10 Hertz
Type of electric connection -
Screw connection
Width -
27 Millimetre
