7545042 {T}

Switching Power Supply Module, Operating voltage 90…132 VAC / 210

Manufacturer's No: IM82-24-5.0     Manufacturer: Turck Banner
Switching Power Supply Module, Operating voltage 90…132 VAC / 210

Availability On Request

£252.09
  • Switching Power Supply Module
  • Operating Voltage: 90-132 VAC / 210-370 VDC
  • Output Voltage: Adjustable from 22.5 to 28.5 VDC
  • Nominal Current: 5 A
  • Single/parallel operating mode
  • Surge protection
  • Removable terminals
  • Universal operating voltage
  • Mains failure bridging up to 30 ms
  • High efficiency

Read more

  • Natural air cooling
  • Power-good relay
  • cULus listed
  • Safety Extra-Low Voltage SELV IEC/EN 60950
  • SEMI-F47


Product

Manufacturer Material ID -
IM82-24-5.0
Net Weight -
0.98kg

Additional Product Information

Commodity Code -
85044095900
Country of Origin -
TW
Minimum Order Quantity -
1
UNSPSC -
39121018

Technical Specification

1st secondary output voltage -
22.5 Volt
Degree of protection (IP rating) -
IP20

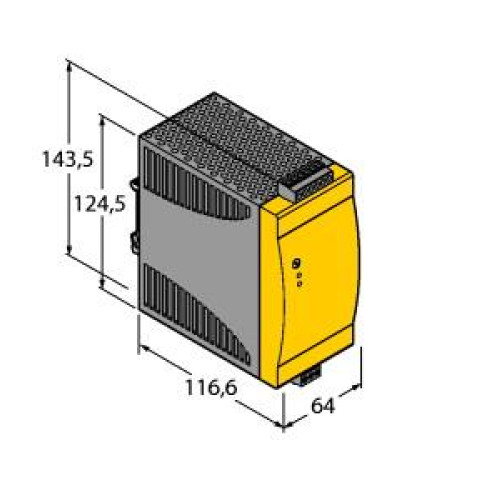

Depth -
143.5 Millimetre
Height -
116.6 Millimetre
Nominal value output current 1 -
5 Ampere
Nominal value output voltage 1 -
24 Volt
Power consumption -
145 Voltampere
Recess width -
64 Millimetre
Type of electric connection -
Other
Width -
64 Millimetre
Turck Banner

Availability On Request

£252.09
