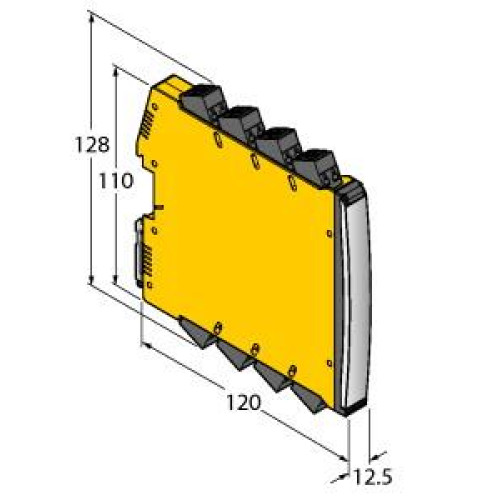

Isolating switching amplifier, 2-channel

Manufacturer's No: IMX12-DI01-2S-2T-0/24VDC/CC     Manufacturer: Turck Banner
Isolating switching amplifier, 2-channel

Availability On Request

£171.67
  • Isolating switching amplifier
  • 2-channel with 2 transistor outputs (? 10kHz)
  • Operating voltage: 10-30 VDC
  • Switchable between 2-channel or signal doubling
  • Output mode adjustable (NO/NC mode)
  • Input circuits monitored for wire-break/short-circuit (ON/OFF switchable)
  • Complete galvanic isolation
  • Input reverse-polarity protected
  • Removable spring type terminals
  • ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha, TIIS, DNV, GL certified

Read more

  • Suitable for use in Zone 2, SIL 2


Product

Manufacturer Material ID -
IMX12-DI01-2S-2T-0/24VDC/CC
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
120 Millimetre
Height -
128 Millimetre
Mounting method -
Snap mounting support rail
Number of inputs, according to NAMUR -
2
Operating temperature -
-25 Degrees celsius
Power consumption -
0.8 Watt
Rated supply voltage at DC -
10 Volt
SIL according to IEC 61508 -
2
Switching current -
0.1 Ampere
Switching frequency -
10000 Hertz
Switching voltage -
30 Volt
Type of electric connection -
Spring clamp connection
Width -
12.5 Millimetre
