2CDG110169R0011

IO/S8.6.1.1 I/O Actuator, 8-fold, MDRC

Manufacturer's No: IO/S8.6.1.1     Manufacturer: ABB

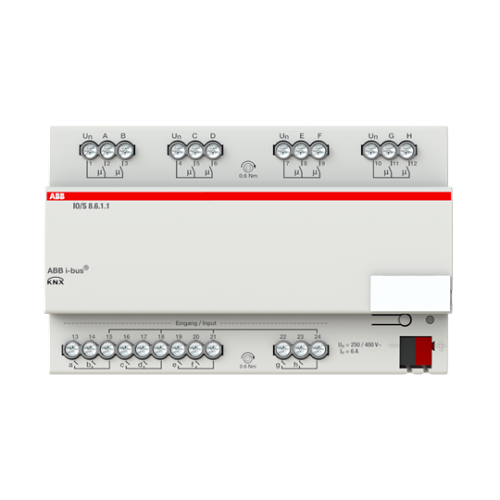

IO/S8.6.1.1 I/O Actuator, 8-fold, MDRC

Availability On Request

£406.90
  • IO/S8.6.1.1 I/O Actuator, 8-fold, MDRC
  • Designed for controlling loads in residential areas like hotel rooms and apartments
  • Provides binary inputs for conventional push-buttons and outputs for load switching
  • Inputs and outputs can be internally connected via ETS
  • Integration into KNX networks enables additional functions like central control and room-based emergency calls


Product

Manufacturer Material ID -
IO/S8.6.1.1
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Type of current -
UN
Output power -
- Voltampere
Rated operating voltage -
- Volt
Number of switch inputs -
-
Switching current (resistive) -
6 Ampere
Degree of protection (IP) -
IP20
Max. number of venetian-blind outputs -
0
Bus system KNX -
Current type -
AC
Degree of protection (IP rating) -
IP20
Input voltage -
230 Volt
Max. number of switching contacts -
8
Max. switching current -
6 Ampere
Max. switching power -
1200 Voltampere
Mounting method -
DRA (DIN-rail adapter)
Number of input channels -
8
Number of inputs -
8
Number of output channels -
8
Other bus systems -
None
Rated current -
6 Ampere
Remote operation possible -
Width in number of modular spacings -
8
With switch function -
ABB

Availability On Request

£406.90
