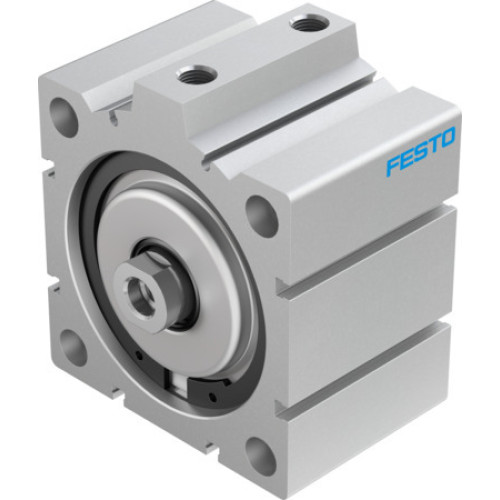

ADVC-100-20-I-P-A Short-stroke cylinder

Manufacturer's No: ADVC-100-20-I-P-A     Manufacturer: Festo
ADVC-100-20-I-P-A Short-stroke cylinder

Availability Available to order

£331.2375
  • Short-stroke cylinder ADVC-100-20-I-P-A
    • Stroke: 20 mm
    • Piston diameter: 100 mm
    • Based on standards: ISO 6431, Hole pattern, VDMA 24562
    • Cushioning: Flexible cushioning rings/plates at both ends
    • Mounting position: Any
    • Mode of operation: Double-acting
    • Design: Piston, Piston rod
    • Position detection: Via proximity switch
    • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar, 14.5 psi, 145 psi
    • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
    • Corrosion resistance class CRC: 1 - Low corrosion stress
    • LABS (PWIS) conformity: VDMA24364-B1/B2-L
    • Ambient temperature: -20°C to 80°C
    • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 4418 N
    • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 4712 N
    • Moving mass: 575 g, for 0 mm stroke: 515 g, additional per 10 mm stroke: 40 g
    • Product weight: 2286 g, for 0 mm stroke: 2145 g, additional per 10 mm stroke: 110 g
    • Type of mounting: With through-hole, accessories, either
    • Pneumatic connection: G1/4
    • Material: RoHS-compliant
      • Cover: Wrought aluminium alloy, anodised
      • Seals: TPE-U(PU)
      • Housing: Wrought aluminium alloy, anodised
      • Piston rod: High-alloy steel


Product

Manufacturer Material ID -
ADVC-100-20-I-P-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32101617

Technical Specification

Weight -
- Gram
Frequency -
- Megahertz
Diameter -
- Millimetre
Radio protocol -
UN
Max. transmission range -
- Millimetre
Type of memory -
UN
Degree of protection (IP) -
UN
Material housing -
Plastic
Width -
54 Millimetre
Height -
0.8 Millimetre
Depth -
85.6 Millimetre
Housing material -
Plastic
Festo

Availability Available to order

£331.2375
