50109675

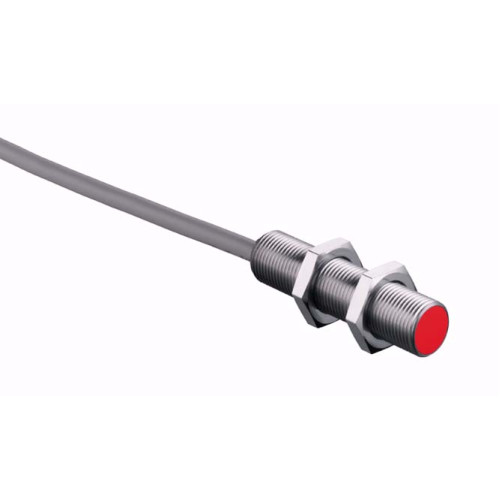

The Inductive switch from . Typ. operating range limit Sn: 4 mm; Operating range Sa: 0 ... 3,2 mm; Switching frequency: 2.000 Hz;

Manufacturer's No: IS 212MM/2NO-4E0     Manufacturer: Leuze
The Inductive switch from . Typ. operating range limit Sn: 4 mm; Operating range Sa: 0 ... 3,2 mm; Switching frequency: 2.000 Hz; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(

Availability Back Order

£44.00
  • Typ. operating range limit Sn: 4 mm
  • Operating range Sa: 0 - 3.2 mm
  • Supply voltage: 10 - 30 V DC
  • Digital switching outputs: 1 Piece
  • Switching output 1: Transistor, NPN, NO (normally open)
  • Switching frequency: 2,500 Hz
  • Connection: Cable, 2,000 mm, 3-wire
  • Design: Cylindrical housing
  • Thread size: M12
  • Dimensions: 12 mm x 52 mm

Read more

  • Type of installation: Embedded
  • Housing material: Metal
  • Certifications: c UL US

Accessories



Product

Manufacturer Material ID -
IS 212MM/2NO-4E0
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
LK
UNSPSC -
39121528

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Category according to EN 954-1 -
UN
Type of interface -
UN
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Performance level acc. EN ISO 13849-1 -
UN
Interference resistance to magnetic fields -
UN
Material housing -
Metal
Thumbnail of product picture -
Coating housing -
Other
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Metal
Interface type -
None
Length of sensor -
52 Millimetre
Max. output current at protected output -
0 Milliampere
Mechanical mounting condition for sensor -
Concise
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Performance level acc. to EN ISO 13849-1 -
None
Rated control supply voltage at DC -
10 Volt
SIL according to IEC 61508 -
None
Supply voltage -
10 Volt
Switching distance -
3.2 Millimetre
Switching frequency -
2500 Hertz
Type of actuation -
Other
Type of electric connection -
Cable
Type of interface for safety communication -
None
Type of switch function -
Normally open contact
Type of switching output -
NPN
Voltage type -
DC
Leuze

Availability Back Order

£44.00
