2CSM341000R1501

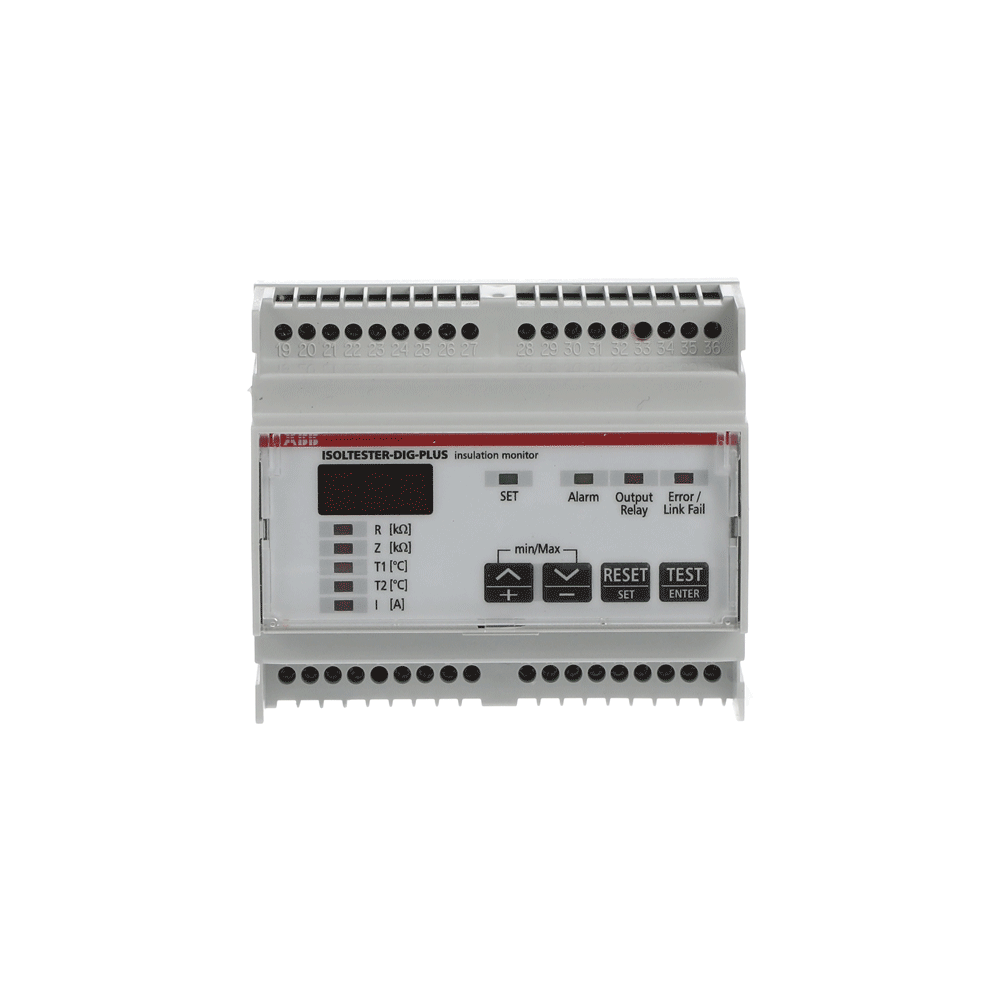

ISOLTESTER-DIG-PLUS Insulation monitoring device for insulated network

Manufacturer's No: ISOLTESTER-DIG-PLU     Manufacturer: ABB
ISOLTESTER-DIG-PLUS Insulation monitoring device for insulated network

Availability On Request

£2,699.11
  • ISOLTESTER-DIG-PLUS: Insulation monitoring device
  • Designed for insulated networks to protect against indirect contacts in IT circuits
  • Prevents circuit breakage at first indirect contact
  • Ideal for systems where residual current devices are prohibited to avoid sudden service interruptions


Product

Manufacturer Material ID -
ISOLTESTER-DIG-PLU
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
90303100
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Number of outputs, safety related, undelayed, with contact -
-
Number of outputs, safety related, delayed, with contact -
-
Number of outputs, safety related, undelayed, semiconductors -
-
Number of outputs, safety related, delayed, semiconductors -
-
Number of outputs, signalling function, undelayed, with contact -
-
Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Number of outputs, signalling function, delayed, semiconductors -
-
Type of safety acc. IEC 61496-1 -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Type of electric connection -
Other
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Stop category acc. IEC 60204 -
Other
Voltage type for actuating -
AC/DC
Depth -
58 Millimetre
Evaluation inputs -
3-channel
Height -
90 Millimetre
Model -
Basic device
Release-delay -
0 Second
Width -
90 Millimetre
