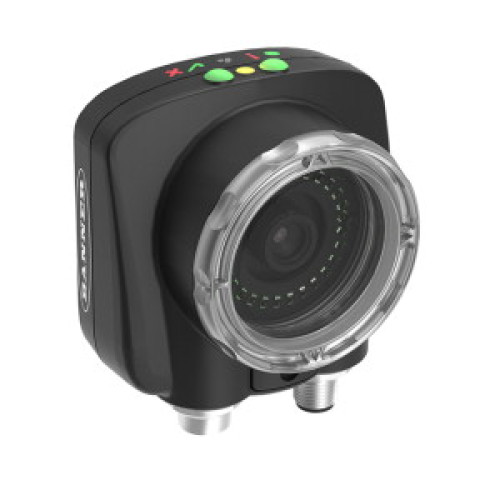

iVu PLUS TG Gen2 Remote Sensor with Ethernet, IR Ring Light and 8 lens, Requires power cordset and bracket, Ethernet and USB cords

Manufacturer's No: IVU2PRGI08     Manufacturer: Turck Banner
iVu PLUS TG Gen2 Remote Sensor with Ethernet, IR Ring Light and 8 lens, Requires power cordset and bracket, Ethernet and USB cordset optional

Availability On Request

£1,744.85
  • Grayscale Image Sensor: 1/3“ CMOS, 752x480 pixels
  • Focal distance: 6 mm
  • Integrated ring light: infrared
  • Internal memory for 30 inspections
  • Protection class: IP67
  • Operating voltage: 10-30 VDC
  • External strobe output: +5 VDC
  • External trigger input
  • Lens: 8mm, M12x1
  • Second iVu generation

Read more

  • External display RDM35 required
  • Connectivity options: 3 x programmable switching output (PNP/NPN), 1 x RS232 data communication, Ethernet via M8x1 male, 4-pin, USB 2.0 host: M8 female, 4-pin, Industrial Ethernet: PROFINET, EtherNet/IP, Modbus/TCP, PCCC


Product

Manufacturer Material ID -
IVU2PRGI08
Net Weight -
0.64kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
26121629
