2CDG110125R0011

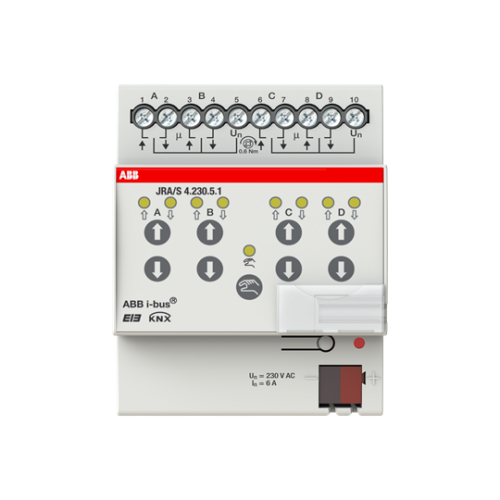

JRA/S4.230.5.1 Blind/Roller Shutter Act, Travel Det, 4-f, 230 V AC, Man Op, MDRC

Manufacturer's No: JRA/S4.230.5.1     Manufacturer: ABB
JRA/S4.230.5.1 Blind/Roller Shutter Act, Travel Det, 4-f, 230 V AC, Man Op, MDRC

Availability On Request

£458.80
  • Model: JRA/S4.230.5.1
  • Function: Blind/Roller Shutter Actuator with Travel Detection
  • Power Supply: 230 V AC
  • Operation: Manual Operation
  • Compatibility: ABB i-bus® KNX for controlling independent 230 V AC drives
  • Applications: Positioning blinds, roller shutters, awnings, doors, windows, and ventilation flaps
  • Automatic Detection: Travel times of the drive detected automatically via current detection
  • Safety Feature: Output contacts electromechanically locked to protect drives
  • User Interface: Front push buttons for controlling outputs, LEDs display current output status
  • Additional Features: No need for auxiliary voltage


Product

Manufacturer Material ID -
JRA/S4.230.5.1
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Type of current -
AC
Max. number of venetian-blind outputs -
4
Switching current (resistive) -
6 Ampere
Degree of protection (IP) -
IP20
Number of inputs -
0
Bus system KNX -
Current type -
AC
Degree of protection (IP rating) -
IP20
Local operation/hand operation -
Max. switching power -
2400 Watt
Minimum depth of back box -
64.5 Millimetre
Mounting method -
DRA (DIN-rail adapter)
Other bus systems -
None
Width in number of modular spacings -
4
With LED indication -
With switch function -
