GJH1213001R5221

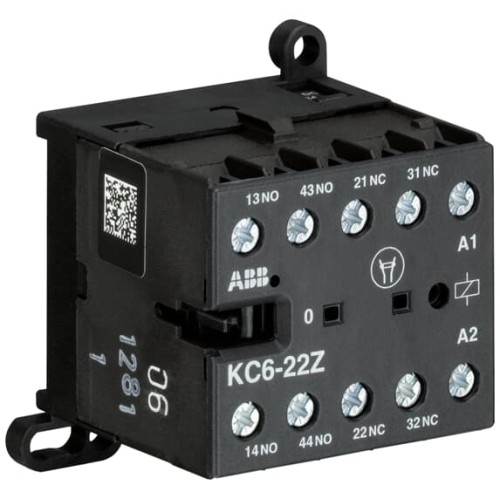

KC6-22Z-2.4-51 Mini Contactor Relay 17-32VDC, 2.4W

Manufacturer's No: KC6.22Z     Manufacturer: ABB
KC6-22Z-2.4-51 Mini Contactor Relay 17-32VDC, 2.4W

Availability On Request

£68.65
  • Model: KC6-22Z-2.4-51 Mini Contactor Relay
  • Voltage: 17-32VDC
  • Power: 2.4W
  • Compact 4 pole contactor relay with screw terminals
  • Ideal for applications requiring reliability in limited space
  • Suitable for switching control signals up to 3A / 400V (AC-15)
  • Low coil consumption allows direct control by a PLC
  • Noiseless and hum-free coil
  • Switch position indication


Product

Manufacturer Material ID -
KC6.22Z
Net Weight -
1.82kg

Additional Product Information

Commodity Code -
85365080
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Connection type auxiliary circuit -
Screw connection
Depth -
46.5 Millimetre
Height -
57.5 Millimetre
Mounting method -
DIN rail
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally closed contact, delayed switching -
0
Number of auxiliary contacts as normally open contact -
2
Number of auxiliary contacts as normally open contact, leading -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Operating voltage at DC -
250 Volt
Rated control supply voltage at DC -
17 Volt
Rated operation current -
4 Ampere
Rated operation current Ie, 400 V -
3 Ampere
Rated switch current -
4 Ampere
Voltage type (operating voltage) -
DC
Voltage type for actuating -
DC
Width -
52.5 Millimetre
