50109834

The Adapter from . Suitable for: MultiNet Plus, PROFIBUS DP; Number of connections: 3 Piece(s); Connection 1: Connector, M12, Axia

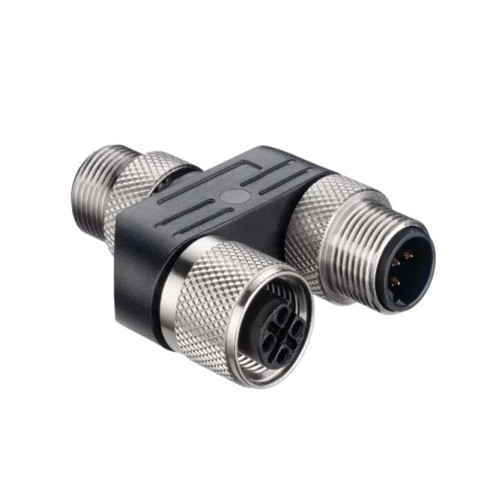

Manufacturer's No: KDS BUS OUT M12-T-5P     Manufacturer: Leuze
The Adapter from . Suitable for: MultiNet Plus, PROFIBUS DP; Number of connections: 3 Piece(s); Connection 1: Connector, M12, Axial, Female, B-coded, 5 -pin; Connection 2: Connector, M12, Axial, Fem

Availability Back Order

£170.00
  • Suitable for MultiNet Plus, PROFIBUS DP
  • Number of connections: 3 pieces
  • Connection 1: M12 Axial Male Connector, B-coded, 5-pin
  • Connection 2: M12 Axial Female Connector, B-coded, 5-pin
  • Connection 3: M12 Axial Male Connector, B-coded, 5-pin

Accessories



Product

Manufacturer Material ID -
KDS BUS OUT M12-T-5P
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Thumbnail of product picture -
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Number of poles sensor/actuator slots -
5
Number of sensor-/actuator-slots -
3
Thread sleeves sensor/actuator slots -
M12
Type of branches for sensor-/actuator cables -
M12
Type of connector for trunk line -
Other
Leuze

Availability Back Order

£170.00
