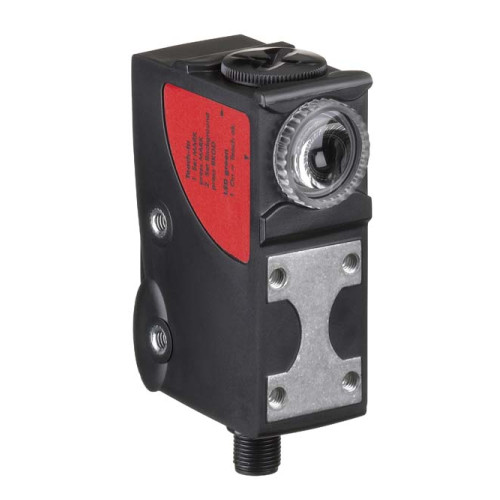

50127841

The Contrast sensor from . Operating range: 0,006 ... 0,012 m; Light source: LED, RGB; Switching frequency: 15.000 Hz; Supply volt

Manufacturer's No: KRT21M-09.PL3/42-M12     Manufacturer: Leuze
The Contrast sensor from . Operating range: 0,006 ... 0,012 m; Light source: LED, RGB; Switching frequency: 15.000 Hz; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Digital

Availability Available to order

£200.00
  • Special version with Time function
  • Operating range: 9 mm with ± 3 mm tolerance
  • Light source: LED, RGB
  • Supply voltage: 10 to 30 V DC
  • Digital switching outputs: 2 pieces
  • Switching output 1: Transistor, PNP with Switching signal on mark
  • Switching output 2: Transistor, NPN with Switching signal on mark
  • Switching frequency: 15,000 Hz
  • Connection: M12 4-pin Connector
  • Dimensions: 31 mm x 53 mm x 80.1 mm

Read more

  • Housing material: Plastic
  • Operational controls: Teach button

Accessories



Product

Manufacturer Material ID -
KRT21M-09.PL3/42-M12
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
HU
UNSPSC -
39121528

Technical Specification

Max. output current -
- Milliampere
Number of contact energized outputs with signalling function -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Light dot -
- Square millimetre
Material of cable sheath -
UN
Material fibre optics core -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Nominal operating distance -
12000 Millimetre
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
53 Millimetre
Housing material -
Plastic
Laser protection class -
Other
Length of sensor -
80.1 Millimetre
Material of optical surface -
Other
Maximum output current -
100 Milliampere
No load current -
0 Milliampere
Number of semiconductor outputs with signalling function -
2
Operation agent-safety class -
Safety class 2
Rated control supply voltage at DC -
10 Volt
Setting procedure -
Teach-In
Switching frequency -
15000 Hertz
Type of electric connection -
Connector M12
Type of light -
Multi-coloured LED
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
31 Millimetre
Leuze

Availability Available to order

£200.00
