2CMA142435R1000

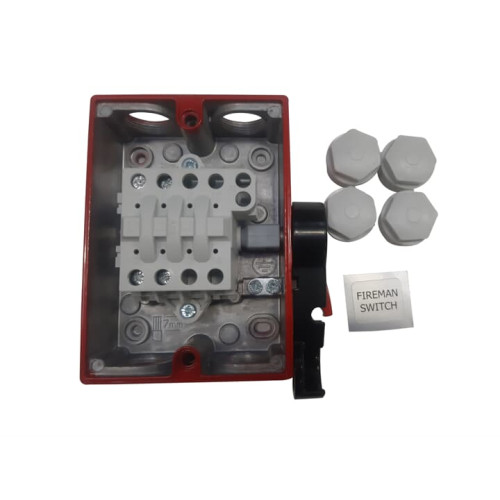

KSF225DP Fireman switch

Manufacturer's No: KSF225DP     Manufacturer: ABB
KSF225DP Fireman switch

Availability On Request

£144.49
  • KSF225DP Fireman switch
    • 2-pole
    • 400V AC22 25A
    • Aluminium enclosure
    • Black side-operated handle
    • Interlocked cover
    • Rigid silumin enclosure
    • UV protected paint
    • IP65 protection against low pressure water jets
    • Suitable for outdoor and indoor use
    • Threaded cable entries for 2 parallel cables from top and bottom
    • Membrane grommets included (IP54)
    • Padlockable handle for one padlock
    • Designed for 4-wire system with fixed neutral and PE terminals
    • Easily accessible terminals for simple installation


Product

Manufacturer Material ID -
KSF225DP
Net Weight -
0.57kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
BG
Minimum Order Quantity -
1
UNSPSC -
39122217

Technical Specification

Conditioned rated short-circuit current Iq -
- kiloampere
Type of electrical connection of main circuit -
UN
Rated short-time withstand current lcw -
- kiloampere
Rated operation power at AC-3, 400 V -
15 Kilowatt
Rated operation power at AC-23, 400 V -
7.5 Kilowatt
Suitable for ground mounting -
Rated permanent current at AC-21, 400 V -
25 Ampere
Switching power at 400 V -
7.5 Kilowatt
Colour control element -
Black
Degree of protection (IP), front side -
IP65
Degree of protection (NEMA) -
Other
Depth -
60 Millimetre
Device construction -
Complete device in housing
Height -
130 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
2
Number of switches -
1
Rated operating voltage -
690 Volt
Rated permanent current Iu -
25 Ampere
Suitable for distribution board installation -
Type of control element -
Rocker lever
Version as main switch -
Version as maintenance-/service switch -
Width -
111 Millimetre
