2CMA142436R1000

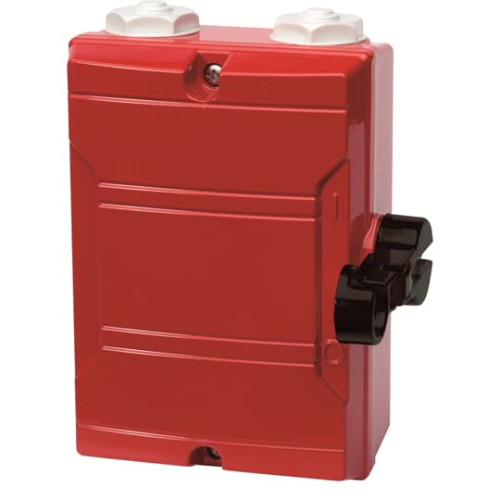

KSF325TPN Fireman switch

Manufacturer's No: KSF325TPN     Manufacturer: ABB
KSF325TPN Fireman switch

Availability Back Order

£146.04
  • ABB KSF325TPN Fireman switch
  • Enclosure made of rigid silumin with UV protected paint
  • IP65 protection against low pressure water jets for outdoor and indoor use
  • Threaded cable entries for 2 parallel cables from top and bottom
  • Membrane grommets included (IP54)
  • Padlockable handle for one padlock
  • Interlocked cover

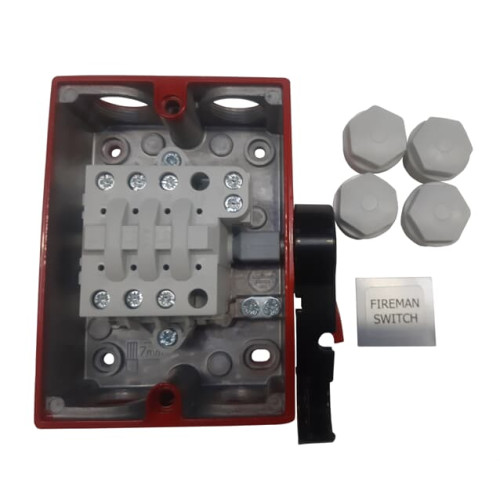

  • Designed for 5 wire system with fixed neutral terminal and PE terminal
  • Easily accessible terminals for easy installation


Product

Manufacturer Material ID -
KSF325TPN
Net Weight -
0.59kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
BG
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Conditioned rated short-circuit current Iq -
- kiloampere
Type of electrical connection of main circuit -
UN
Rated short-time withstand current lcw -
- kiloampere
Rated operation power at AC-3, 400 V -
15 Kilowatt
Suitable for ground mounting -
Rated permanent current at AC-21, 400 V -
25 Ampere
Colour control element -
Black
Degree of protection (IP), front side -
IP65
Degree of protection (NEMA) -
Other
Depth -
60 Millimetre
Device construction -
Complete device in housing
Height -
130 Millimetre
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Number of switches -
1
Rated operating voltage -
690 Volt
Rated operation power at AC-23, 400 V -
7.5 Kilowatt
Rated permanent current at AC-23, 400 V -
16 Ampere
Rated permanent current Iu -
25 Ampere
Suitable for distribution board installation -
Switching power at 400 V -
7.5 Kilowatt
Type of control element -
Rocker lever
Version as main switch -
Version as maintenance-/service switch -
Width -
111 Millimetre
ABB

Availability Back Order

£146.04
