2CMA142430R1000

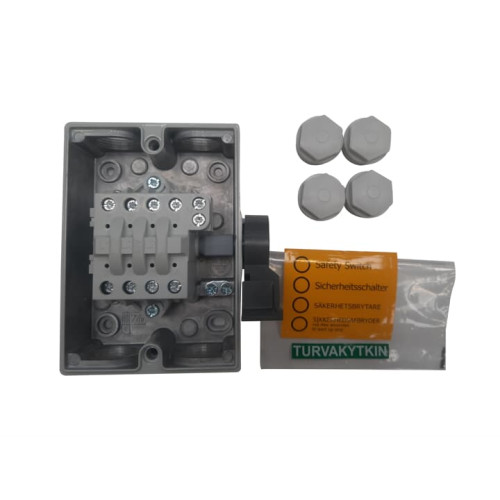

LBAS316TPN Safety switch

Manufacturer's No: LBAS 316 TPN     Manufacturer: ABB
LBAS316TPN Safety switch

Availability Back Order

£142.25
  • Model: LBAS316TPN Safety Switch
  • Type: 3-pole Safety Switch
  • Voltage: 415V AC23
  • Current: 16A (7.5kW)
  • Mounted Auxiliary Contact: 1 Normally Open, 0 Normally Closed
  • Enclosure Material: Aluminium
  • Enclosure Protection: IP65 (Protected against low-pressure water jets)
  • Handle Type: Side-operated, Padlockable
  • Cover: Interlocked
  • Enclosure: Rigid silumin construction with UV-protected paint

Read more

  • Cable Entries: Threaded, accommodates 2 parallel cables from top and bottom
  • Grommets: Membrane grommets included (IP54)
  • Wiring: Designed for 5-wire system with fixed neutral and PE terminals
  • Accessibility: Terminals easily accessible for installation


Product

Manufacturer Material ID -
LBAS 316 TPN
Net Weight -
0.57kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
BG
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Conditioned rated short-circuit current Iq -
- kiloampere
Type of electrical connection of main circuit -
UN
Rated short-time withstand current lcw -
- kiloampere
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Suitable for ground mounting -
Rated permanent current at AC-21, 400 V -
25 Ampere
Colour control element -
Grey
Degree of protection (IP), front side -
IP65
Degree of protection (NEMA) -
Other
Depth -
60 Millimetre
Device construction -
Complete device in housing
Height -
130 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of poles -
3
Number of switches -
1
Rated operating voltage -
690 Volt
Rated operation power at AC-23, 400 V -
7.5 Kilowatt
Rated permanent current at AC-23, 400 V -
16 Ampere
Rated permanent current Iu -
32 Ampere
Suitable for distribution board installation -
Switching power at 400 V -
7.5 Kilowatt
Type of control element -
Rocker lever
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
Width -
111 Millimetre
ABB

Availability Back Order

£142.25
