50135695

The Capacitive sensor from . Switching distance Sn: 1 ... 4 mm; Assured switching distance: 4 mm; Output function: NPN, NC (norma

Manufacturer's No: LCS-1M12M-F04NNC-K020P     Manufacturer: Leuze

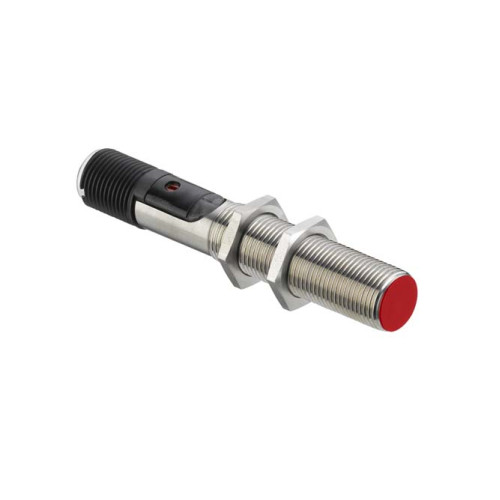

The Capacitive sensor from .  Switching distance Sn: 1 ... 4 mm; Assured switching distance: 4 mm; Output function: NPN, NC (normally closed); Connection: Cable, 2,000 mm, 3 -wire; Housing design: C

Availability Back Order

£93.00
  • Switching distance: Sn: 1 ... 4 mm; Assured switching distance: 4 mm
  • Output function: NPN, NC (normally closed)
  • Connection: Cable, 2,000 mm, 3-wire
  • Design: Cylindrical housing
  • Thread size: M12 x 1 mm
  • Dimensions: 12 mm x 61 mm

Accessories



Product

Manufacturer Material ID -
LCS-1M12M-F04NNC-K020P
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
HU
UNSPSC -
32151500

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Category according to EN 954-1 -
UN
Type of interface -
UN
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Performance level acc. EN ISO 13849-1 -
UN
Material housing -
Metal
Thumbnail of product picture -
Coating housing -
Other
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Metal
Length of sensor -
61 Millimetre
Max. output current at protected output -
0 Milliampere
Mechanical mounting condition for sensor -
Concise
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Performance level acc. to EN ISO 13849-1 -
None
Rated control supply voltage at DC -
10 Volt
SIL according to IEC 61508 -
None
Supply voltage -
10 Volt
Switching distance -
4 Millimetre
Switching frequency -
100 Hertz
Type of actuation -
Other
Type of electric connection -
Cable
Type of interface for safety communication -
None
Type of switch function -
Breaker contact
Type of switching output -
NPN
Voltage type -
DC
Leuze

Availability Back Order

£93.00
