3091681

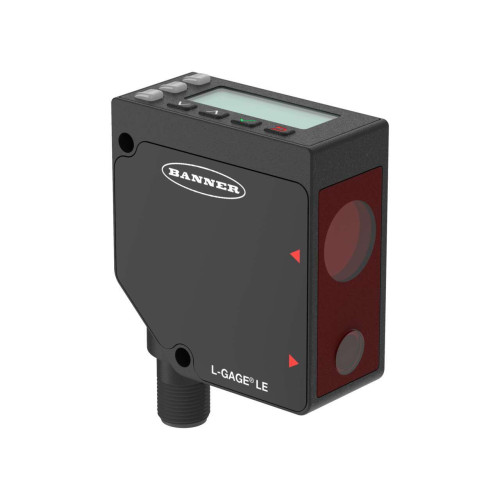

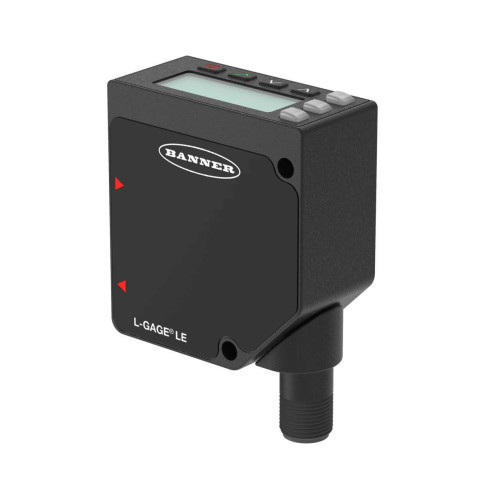

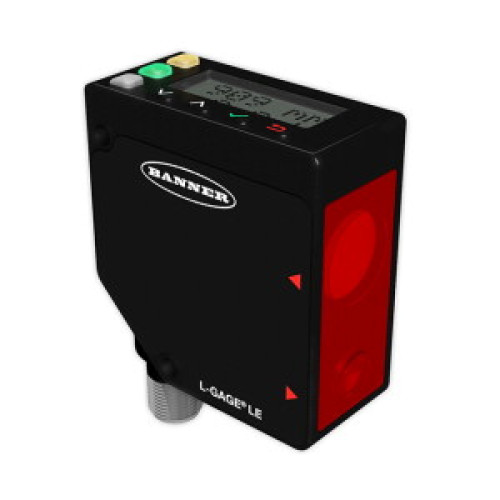

Laser Displacement Sensor, Range: 100-400, Input: 12-30 V dc, Output: Analog: 4-20 mA, Discrete: NPN/PNP Configurable, M12 Integra

Manufacturer's No: LE250IQ     Manufacturer: Turck Banner
Laser Displacement Sensor, Range: 100-400, Input: 12-30 V dc, Output: Analog: 4-20 mA, Discrete: NPN/PNP Configurable, M12 Integral QD

Availability Back Order

£930.60
  • Photoelectric Sensor, Diffuse-Mode Laser Sensor (Triangulation)
  • Operating voltage: 12-30 VDC
  • Max. range: 400 mm
  • 2-line, 8-segment display
  • Rotatable connector, male M12 x 1, 5-pin
  • Laser class 2, red, 650 nm
  • Resolution at 100-250 mm distance: < 0.02 mm
  • Resolution at 250-400 mm distance: < 0.2 mm
  • PNP/NPN-switching output, switchable
  • Analog output: 4-20 mA


Product

Manufacturer Material ID -
LE250IQ
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

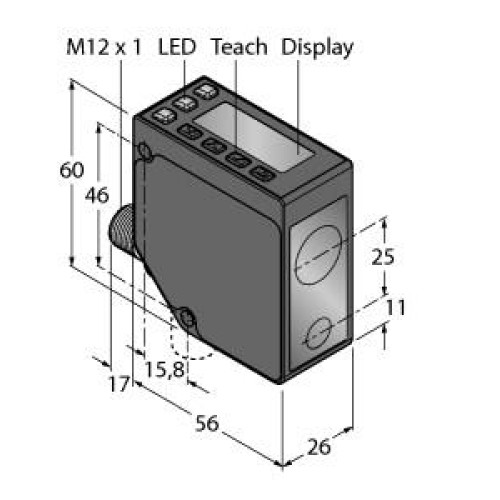

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
77 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
56 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Supply voltage -
12 Volt
Switching frequency -
250 Hertz
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
26 Millimetre
Turck Banner

Availability Back Order

£930.60
