3097768

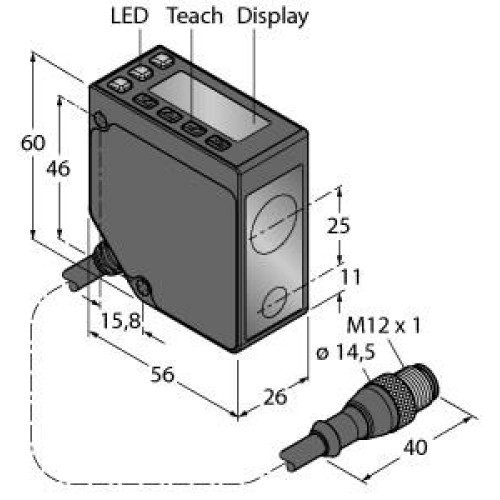

Photoelectric Sensor, Diffuse-Mode Laser Sensor (Triangulation), With Switching

Manufacturer's No: LE250KC1QP     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse-Mode Laser Sensor (Triangulation), With Switching

Availability On Request

£1,187.64
  • Photoelectric Sensor, Diffuse-Mode Laser Sensor (Triangulation)
  • Operating voltage: 12-30 VDC
  • Max. range: 400 mm
  • Cable length: 0.15 m, 2-line, 8-segment display
  • Cable: Male end M12 x 1, 5-pin, PVC, 150 mm
  • Range: 100-400 mm
  • Laser class 1, red, 650 nm, acc. to IEC 60825-1:2007
  • Resolution at 100-250 mm distance: < 0.02 mm
  • Resolution at 250-400 mm distance: < 0.2 mm
  • 1 x PNP switching output with IO-Link communication

Read more

  • Transmission of process value and parametrization via IO-Link


Product

Manufacturer Material ID -
LE250KC1QP
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
43211902

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
60 Millimetre
Housing material -
Other
Laser protection class -
Class 1
Length of sensor -
56 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Standard for interfaces -
Other
Supply voltage -
12 Volt
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width sensor -
26 Millimetre
Turck Banner

Availability On Request

£1,187.64
