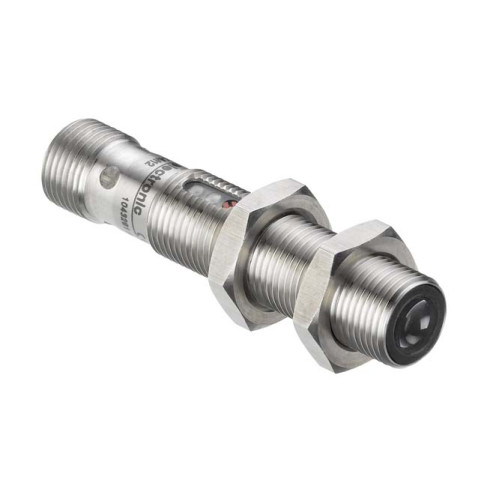

LE412BL2.1/2X-M12 - Throughbeam photoelectric sensor receiver

Manufacturer's No: LE412BL2.1/2X-M12     Manufacturer: Leuze
LE412BL2.1/2X-M12 - Throughbeam photoelectric sensor receiver

Availability On Request

POA
  • Model: LE412BL2.1/2X-M12
  • Type: Throughbeam photoelectric sensor receiver
  • Supply Voltage: 10-36 V DC
  • Digital Switching Outputs: 1
  • Switching Output 1: Transistor, NPN, Light switching
  • Switching Frequency: 5,000 Hz
  • Connection: M12 Metal 4-pin Connector
  • Housing Design: Cylindrical
  • Thread Size: M12
  • Dimensions: 12 mm x 60 mm

Read more

  • Housing Material: Stainless Steel
  • Operational Controls: 270° potentiometer
  • Ambient Temperature, Operation: -10 to 50 °C
  • Degree of Protection: IP 67


Product

Manufacturer Material ID -
LE412BL2.1/2X-M12
Net Weight -

Additional Product Information

UNSPSC -
39121528

Technical Specification

Voltage type -
UN
Material housing -
UN
Opening angle -
- Degrees
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Type of switch function -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Laser protection class -
UN
Type of light -
UN
Light dot -
- Square millimetre
Max. output current at protected output -
- Milliampere
Min. reflector distance -
- Millimetre
Transmission range of the safety field -
- Metre
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Wavelength of the sensor -
- Nanometre
Material of cable sheath -
UN
Degree of protection (IP) -
UN
AWG-number -
-
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Max. switching distance -
- Millimetre
Degree of protection (NEMA) -
UN
Max. output current -
200 Milliampere
Ambient temperature -
-10 Degrees celsius
Switching frequency -
5 Hertz
Number of semiconductor outputs with signalling function -
1
Type of electric connection -
Connector M12
Type of switching output -
NPN
Operation agent-safety class -
Safety class 3
Setting procedure -
Manual adjustment
Construction type housing -
Cylinder, screw-thread
Scope of delivery of the one-way system -
Receiver
Time of reaction -
1 Millisecond
Material of optical surface -
Glass
Diameter sensor -
12 Millimetre
Length of sensor -
60 Millimetre
Sensing mode -
Light switching
Rated switching distance -
50000 Millimetre
