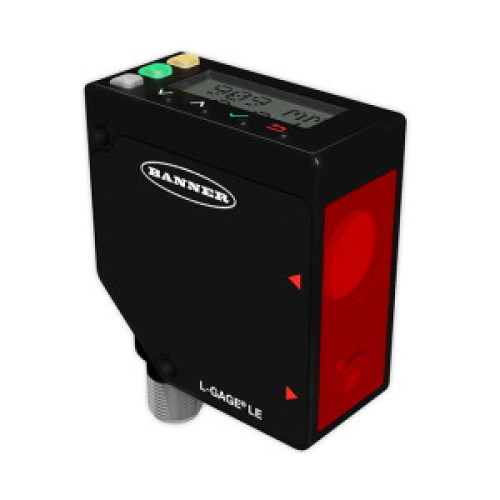

3094196

Laser Displacement Sensor, Range: 100-1000, Input: 12-30 V dc, Outputs: Discrete: 2 NPN/PNP Configurable, M12 Integral QD

Manufacturer's No: LE550DQ     Manufacturer: Turck Banner
Laser Displacement Sensor, Range: 100-1000, Input: 12-30 V dc, Outputs: Discrete: 2 NPN/PNP Configurable, M12 Integral QD

Availability On Request

£753.11
  • Photoelectric Sensor with Diffuse-Mode Laser (Triangulation)
  • Operating Voltage: 12-30 VDC
  • Max. Range: 1000 mm
  • 2-Line 8-Segment Display
  • Rotatable Connector: Male M12 x 1, 5-pin
  • Laser Class 2, Red, 650 nm
  • Resolution at 100-600 mm Distance: < 0.5 mm
  • Resolution at 600-1000 mm Distance: < 1 mm
  • Two Switching Outputs: PNP/NPN Configurable


Product

Manufacturer Material ID -
LE550DQ
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

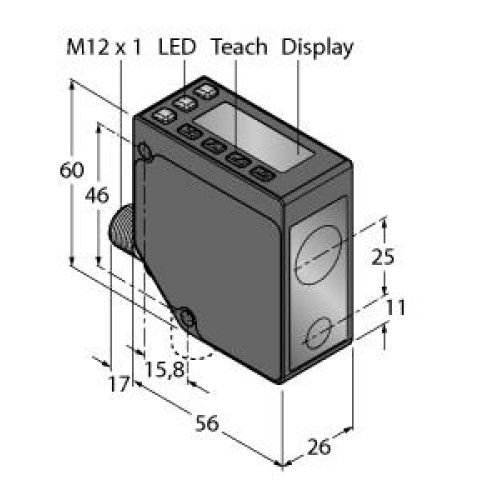

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
77 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
56 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Supply voltage -
12 Volt
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switching output -
PNP/NPN
Width sensor -
26 Millimetre
Turck Banner

Availability On Request

£753.11
