3086746

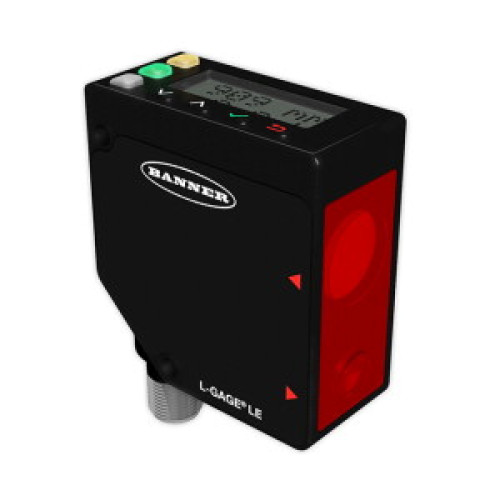

Laser Displacement Sensor, Range: 100-1000, Input: 12-30 V dc, Output: Analog: 4-20 mA, Discrete: NPN/PNP Configurable, M12 Integr

Manufacturer's No: LE550IQ     Manufacturer: Turck Banner
Laser Displacement Sensor, Range: 100-1000, Input: 12-30 V dc, Output: Analog: 4-20 mA, Discrete: NPN/PNP Configurable, M12 Integral QD

Availability On Request

POA
  • Photoelectric Sensor (Diffuse-Mode Laser Sensor)
  • Analog Output
  • Operating Voltage: 12-30 VDC
  • Max. Range: 1000 mm
  • 2-Line 8-Segment Display
  • Rotatable Connector: Male M12 x 1, 5-pin
  • Laser Class 2, Red, 650 nm
  • Resolution at 100-600 mm Distance: < 0.5 mm
  • Resolution at 600-1000 mm Distance: < 1 mm
  • PNP/NPN-Switching Output, Switchable

Read more

  • Analog Output: 4-20 mA


Product

Manufacturer Material ID -
LE550IQ
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

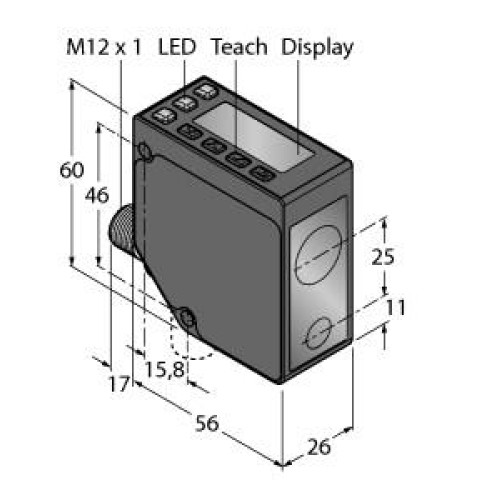

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
77 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
56 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Supply voltage -
12 Volt
Switching frequency -
250 Hertz
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
26 Millimetre
Turck Banner

Availability On Request

POA
