3086750

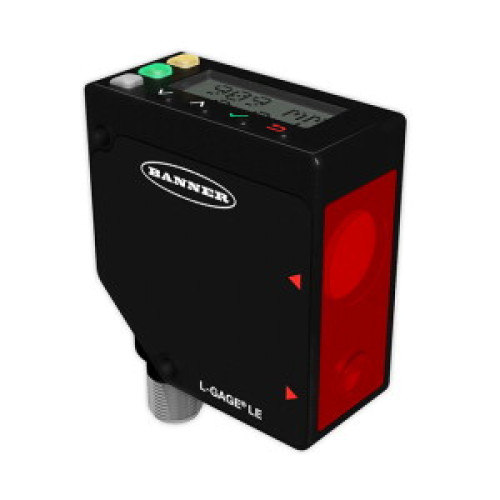

Laser Displacement Sensor, Range: 100-1000, Input: 12-30 V dc, Output: Analog: 0-10 V, Discrete: NPN/PNP Configurable, M12 Integra

Manufacturer's No: LE550UQ     Manufacturer: Turck Banner
Laser Displacement Sensor, Range: 100-1000, Input: 12-30 V dc, Output: Analog: 0-10 V, Discrete: NPN/PNP Configurable, M12 Integral QD

Availability On Request

£781.24
  • Photoelectric Sensor, Diffuse-Mode Laser Sensor (Triangulation)
  • Analog Output: 0-10 V
  • Operating Voltage: 12-30 VDC
  • Max. Range: 1000 mm
  • Laser Class 2, red, 650 nm
  • Resolution at 100-600 mm distance: < 0.5 mm
  • Resolution at 600-1000 mm distance: < 1 mm
  • 2-line 8-segment display
  • Rotatable connector, male M12 x 1, 5-pin
  • PNP/NPN-switching output, switchable


Product

Manufacturer Material ID -
LE550UQ
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

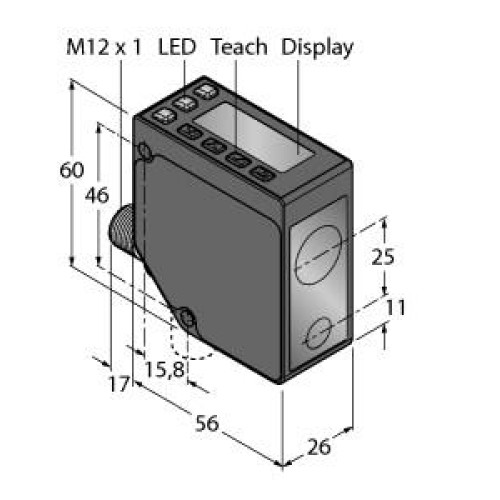

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
77 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
56 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Supply voltage -
12 Volt
Switching frequency -
250 Hertz
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
26 Millimetre
Turck Banner

Availability On Request

£781.24
