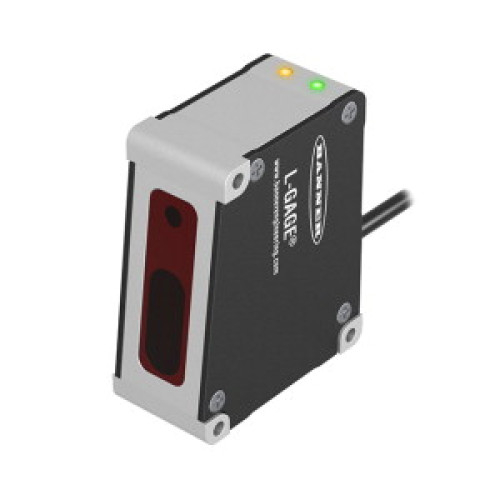

Photoelectric Sensor, Diffuse Mode Sensor, Laser Measuring System

Manufacturer's No: LH30IX485QP     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor, Laser Measuring System

Availability Available to order

POA
  • Photoelectric Sensor with Diffuse Mode
  • Laser Measuring System
  • Operating voltage: 18-30 VDC
  • Max. range: 35 mm
  • Measuring range: 25-35 mm
  • Max. resolution: 1 µm
  • Indication of signal intensity
  • Thickness measurement capability up to 5 mm
  • Analog output: 4-20 mA
  • RS485 serial communication

Read more

  • Adjustable via enclosed software
  • Requires USB converter INTUSB458-LH
  • Requires 8-pin Y-piece CSB-M1280M1280-LH for connection to a second LH30

Follow-up article



Product

Manufacturer Material ID -
LH30IX485QP
Net Weight -
0.72kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

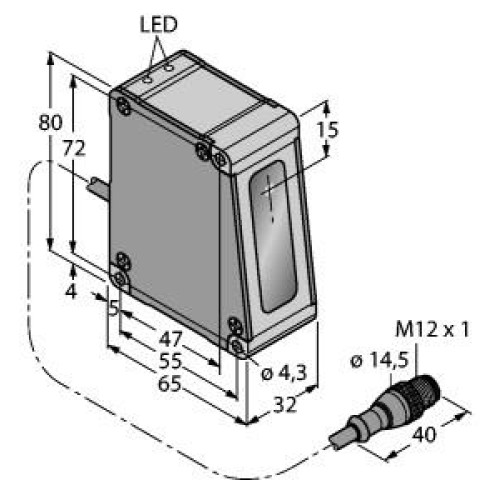

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
80 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
65 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Glass
Setting procedure -
Other
Standard for interfaces -
RS-485
Supply voltage -
18 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switching output -
Other
Width sensor -
32 Millimetre
