LRS1.B.E4MX.B.1

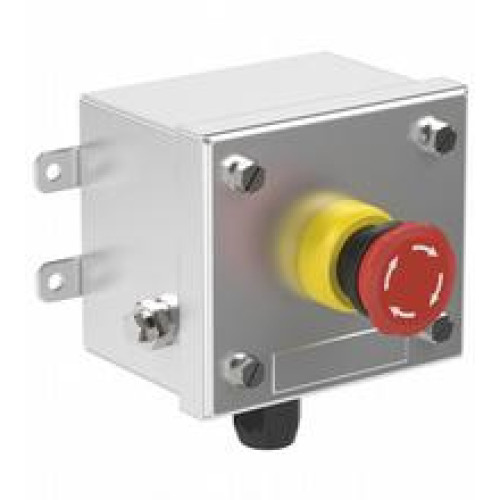

Product: LRS emergency stop unit; Enclosure material: AISI 316L stainless steel; Enclosure size (HxWxD): 96 x 110 x 86 mm; Finish:

Manufacturer's No: 70142237     Manufacturer: Pepperl+Fuchs
Product: LRS emergency stop unit; Enclosure material: AISI 316L stainless steel; Enclosure size (HxWxD): 96 x 110 x 86 mm; Finish: mechanically brushed; Enclosure cover: fixed by screws, fully deta..

Availability On Request

£280.42
  • Enclosure material: AISI 316L stainless steel
  • Enclosure size: 96 x 110 x 86 mm (HxWxD)
  • Finish: mechanically brushed
  • Enclosure cover: fully detachable, fixed by screws
  • Gasket: silicone rubber
  • Equipped with:
    • 1x red/yellow 40mm emergency stop button (twist to release)
    • 1x vertically mounted 35mm DIN rail
    • 1x rail-mounted contact block with 1x NO & 1x NC contacts
    • 1x M6 nickel-plated brass internal/external earth stud
    • 1x CG.PEDS1.M20.PA.C.15 plastic gland fitted in lower face
  • Explosion protection:
    • Gas: Ex II 2 G Ex db eb IIC T6, T4 Gb
    • Dust: Ex II 2 D Ex tb IIIC T80?C, T130?C Db
  • Contact block rating:
    • 250 V AC - 13 A - AC12
    • 250 V AC - 10 A - AC15
    • 110 V DC - 1 A - DC13
    • 24 V DC - 1 A - DC13
  • Ambient temperature: -40?C to +40?C, +55?C
  • Degree of protection: IP66

Read more

  • Certifications: ATEX, IECEx, UKEx (further on request)


Product

Manufacturer Material ID -
70142237
Net Weight -
1.03kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£280.42
