50041840

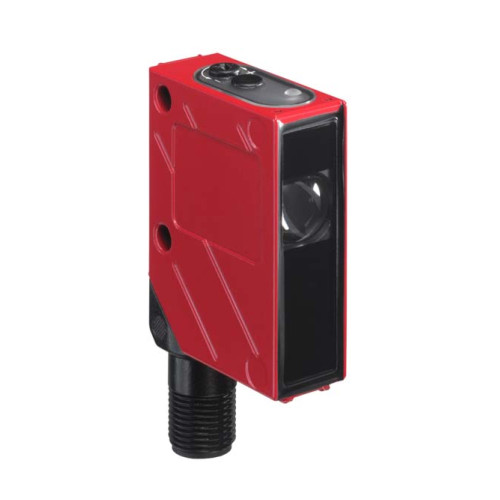

Luminescence sensor Operating range, white paper: 50 x 50 mm: 0 ... 0.15 m; Light source: LED, UV; Receive filter: 400 ... 750 nm;

Manufacturer's No: LRT8/24.04-50-S12     Manufacturer: Leuze
Luminescence sensor Operating range, white paper: 50 x 50 mm: 0 ... 0.15 m; Light source: LED, UV; Receive filter: 400 ... 750 nm; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(

Availability Back Order

£676.00
  • Special version: Autocollimation
  • Operating range: 0 to 0.15 m
  • White paper size: 50 x 50 mm
  • Light source: LED, UV
  • Receive filter: 400 to 750 nm
  • Supply voltage: 10 to 30 V DC
  • Digital switching outputs: 2 pieces
  • Switching output 1: Transistor, PNP, Light switching
  • Switching output 2: Transistor, NPN, Light switching
  • Connection: Connector, M12, 5-pin

Read more

  • Dimensions: 15 mm x 48 mm x 38 mm
  • Housing material: Metal

Accessories



Product

Manufacturer Material ID -
LRT8/24.04-50-S12
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Leuze
Max. output current -
- Milliampere
Material housing -
UN
Lamp type -
UN
Laser protection class -
UN
No load current -
- Milliampere
Material of cable sheath -
UN
Material fibre optics core -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
48 Millimetre
Housing material -
Other
Length of sensor -
38 Millimetre
Light dot -
22 Square millimetre
Light source type -
UV LED
Material of optical surface -
Glass
Nominal operating distance -
150 Millimetre
Number of contact energized outputs with signalling function -
0
Number of semiconductor outputs with signalling function -
2
Operation agent-safety class -
Safety class 2
Setting procedure -
Other
Switching frequency -
1500 Hertz
Type of electric connection -
Connector M12
Type of frequency band of the receiving spectrum -
Other
Type of light -
Other
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
15 Millimetre
Leuze

Availability Back Order

£676.00
