EZ-SCREEN TYPE 2, TRIP Output, E/R Pair, 30 Resolution, 1800 Defined Area, 15 m Range, Yellow Housing, 8-pin M12 Integral QD, Moun

Manufacturer's No: LS2TP30-1800Q88     Manufacturer: Turck Banner
EZ-SCREEN TYPE 2, TRIP Output, E/R Pair, 30 Resolution, 1800 Defined Area, 15 m Range, Yellow Housing, 8-pin M12 Integral QD, Mounting Hardware Included

Availability On Request

£4,057.71
  • Safety Light Curtain, Emitter/Receiver Pair
  • Max. Range: 15,000 mm
  • Scan Field: 1,800 mm
  • Resolution: 30 mm
  • Range: 15 m
  • Operating Voltage: 20-28 VDC
  • Connector: M12 x 1 male, 8-pin
  • Protection Class: IP65
  • Switching Output: Without restart interlock (TRIP)
  • Type 2 according to IEC 61496-1, -2

Read more

  • Category 2 PL d according to EN ISO 13849-1
  • SIL 2 according to IEC 61508


Product

Manufacturer Material ID -
LS2TP30-1800Q88
Net Weight -
6.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius

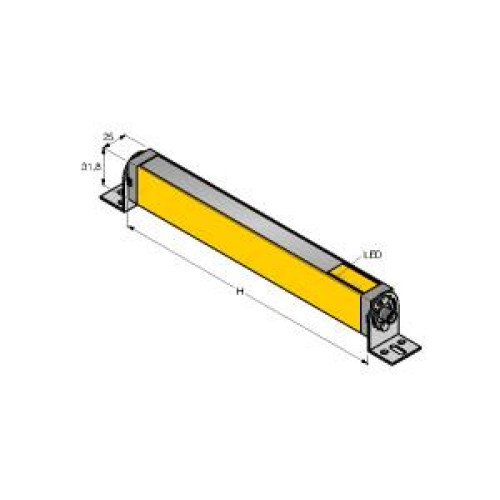

Height of sensor -
1863 Millimetre
Length of sensor -
31.8 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
29 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
1800 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
950 Nanometre
Width sensor -
25.2 Millimetre
