50138109

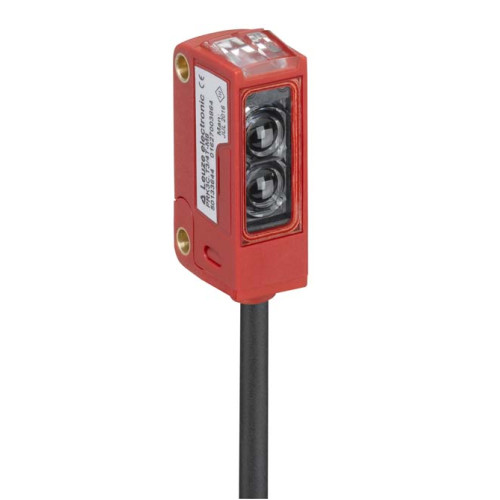

Throughbeam photoelectric sensor transmitter Special design: Activation input; Operating range limit: 0.05 ... 10 m; Light source:

Manufacturer's No: LS3C.B/XX     Manufacturer: Leuze
Throughbeam photoelectric sensor transmitter Special design: Activation input; Operating range limit: 0.05 ... 10 m; Light source: LED, Red; Supply voltage: 10 ... 30 V, DC; Connection: Cable, 2,000

Availability Back Order

£73.00
  • Operating Range Limit: 0.05m to 10m
  • Light Source: Red LED
  • Supply Voltage: 10V to 30V DC
  • Connection: 4-wire Cable, 2000mm
  • Housing Design: Cubic
  • Dimensions: 11.4mm x 34.2mm x 18.3mm
  • Housing Material: Plastic
  • Ambient Temperature Range: -40°C to 60°C
  • Degree of Protection: IP67, IP69K

Accessories

Others



Product

Manufacturer Material ID -
LS3C.B/XX
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Max. output current -
- Milliampere
Opening angle -
- Degrees
Switching frequency -
- Hertz
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Type of interface for safety communication -
UN
Type of switching output -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Setting procedure -
UN
Light dot -
- Square millimetre
Time of reaction -
- Millisecond
Type of safety acc. IEC 61496-1 -
UN
Degree of protection (IP) -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Sensing mode -
UN
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
34.2 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
18.3 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Max. switching distance -
10000 Millimetre
Min. reflector distance -
50 Millimetre
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
8500 Millimetre
Scope of delivery of the one-way system -
Transmitter
Switching voltage of OSSD at state "high" -
0 Volt
Transmission range of the safety field -
0.05 Metre
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Other
Voltage type -
DC
Wavelength of the sensor -
632 Nanometre
Width sensor -
11.4 Millimetre
Leuze

Availability Back Order

£73.00
