50140165

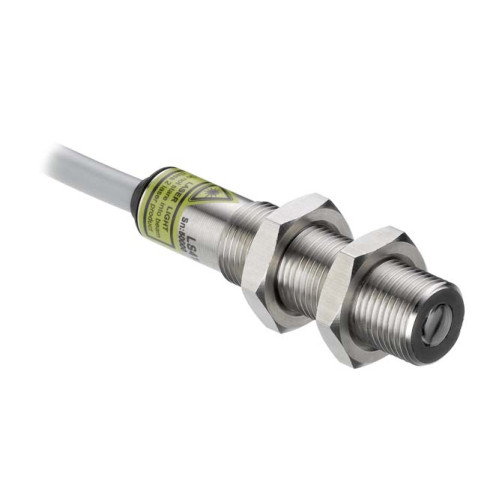

Throughbeam photoelectric sensor transmitter Special design: Deactivation input; Light source: Laser, Red; Protection class: 2; Su

Manufacturer's No: LS412BL2/D     Manufacturer: Leuze
Throughbeam photoelectric sensor transmitter Special design: Deactivation input; Light source: Laser, Red; Protection class: 2; Supply voltage: 10 ... 36 V, DC; Connection: Cable, 2,000 mm, 3 -wire;

Availability On Request

£166.00
  • Special version: Deactivation input
  • Operating range limit: 0 to 50 m
  • Light source: Laser, Red
  • Protection class: 2
  • Supply voltage: 10 to 36 V DC
  • Connection: Cable, 2,000 mm, 3-wire
  • Design: Cylindrical housing
  • Thread size: M12
  • Dimensions: 12 mm x 51 mm
  • Housing material: Stainless steel

Read more

  • Ambient temperature, operation: -10 to 50 °C
  • Degree of protection: IP 67

Accessories

Others



Product

Manufacturer Material ID -
LS412BL2/D
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
UNSPSC -
39121528

Technical Specification

Max. output current -
- Milliampere
Material housing -
UN
Opening angle -
- Degrees
Switching frequency -
- Hertz
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Type of interface for safety communication -
UN
Type of switching output -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Setting procedure -
UN
Light dot -
- Square millimetre
Time of reaction -
- Millisecond
Type of safety acc. IEC 61496-1 -
UN
Degree of protection (IP) -
UN
AWG-number -
-
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Sensing mode -
UN
Degree of protection (NEMA) -
UN
Thumbnail of product picture -
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Metal
Laser protection class -
Class 2
Length of sensor -
51 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Glass
Max. output current at protected output -
0 Milliampere
Max. switching distance -
50000 Millimetre
Min. reflector distance -
0 Millimetre
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
50000 Millimetre
Scope of delivery of the one-way system -
Transmitter
Switching voltage of OSSD at state "high" -
0 Volt
Transmission range of the safety field -
0 Metre
Type of electric connection -
Cable
Type of light -
Laser diode, red light
Type of switch function -
Other
Voltage type -
DC
Wavelength of the sensor -
660 Nanometre
Leuze

Availability On Request

£166.00
