1SBV010751R1211

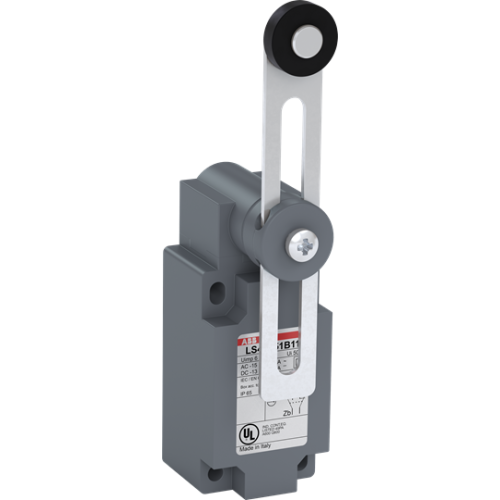

LS43P51B11 Limit Switch

Manufacturer's No: LS43P51B11     Manufacturer: ABB
LS43P51B11 Limit Switch

Availability Back Order

£71.43
  • Model: LS43P51B11
  • Width: 40 mm
  • Material: Fiber-glass reinforced UL-V0
  • Mounting: 4 holes at top and bottom
  • Cable Entry: 1 ISO M20x1.5 on bottom
  • Actuator: Adjustable plastic roller lever (Ø22 mm)
  • Contacts: 1 N.O + 1 N.C snap action (Zb type)


Product

Manufacturer Material ID -
LS43P51B11
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85364900
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Alignment of the control element -
Other
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Diameter sensor -
0 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
135 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
62 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
0
Rated operation current Ie at AC-15, 125 V -
5.5 Ampere
Rated operation current Ie at AC-15, 230 V -
3.1 Ampere
Rated operation current Ie at AC-15, 24 V -
10 Ampere
Rated operation current Ie at DC-13, 125 V -
0.6 Ampere
Rated operation current Ie at DC-13, 230 V -
0.4 Ampere
Rated operation current Ie at DC-13, 24 V -
6 Ampere
Switching function -
Quick-break switch
Type of control element -
Plunger
Type of electric connection -
Cable entry metrical
Type of interface for safety communication -
None
Width sensor -
41 Millimetre
ABB

Availability Back Order

£71.43
