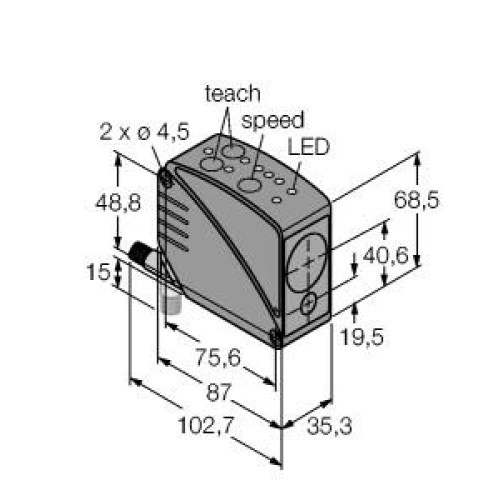

LT3 Series: Laser Diffuse Time-Of-Flight Sensor, Range: 300 to 5 m, 12-24 V dc, Outputs: Discrete: 2 PNP or NPN, 8-pin M12 Integra

Manufacturer's No: LT3BDQ     Manufacturer: Turck Banner
LT3 Series: Laser Diffuse Time-Of-Flight Sensor, Range: 300 to 5 m, 12-24 V dc, Outputs: Discrete: 2 PNP or NPN, 8-pin M12 Integral QD

Availability On Request

£1,940.84
  • Photoelectric sensor with diffuse-mode laser for runtime measurement
  • Operating voltage: 12-24 VDC
  • Maximum range: 5000 mm
  • Male M12 x 1, 8-pin connection
  • Signal intensity indication
  • Protection class: IP67
  • Measuring range (distance to white object): 5 m
  • 3 adjustable response times for switching output
  • Two independently adjustable switching ranges


Product

Manufacturer Material ID -
LT3BDQ
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
68.5 Millimetre
Housing material -
Plastic
Laser protection class -
Class 2
Length of sensor -
87 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Setting procedure -
Teach-In
Supply voltage -
12 Volt
Switching frequency -
1000 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
35.3 Millimetre
Turck Banner

Availability On Request

£1,940.84
