Photoelectric Sensor, Diffuse-Mode Laser Sensor (Runtime Measurement), With Swit

Manufacturer's No: LT3NI W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse-Mode Laser Sensor (Runtime Measurement), With Swit

Availability On Request

POA
  • Photoelectric Sensor
  • Diffuse-Mode Laser Sensor for runtime measurement
  • Switching and Analog Output
  • Operating Voltage: 12-24 VDC
  • Max. Range: 5000 mm
  • Cable Length: 9 m, 7-wire
  • Indication of signal intensity
  • Protection Class: IP67
  • Measuring Range to white object: 5 m
  • 3 adjustable response times for switching output

Read more

  • Hysteresis and measuring range independently adjustable
  • Edge of analog output invertible


Product

Manufacturer Material ID -
LT3NI W/30
Net Weight -
0.78kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

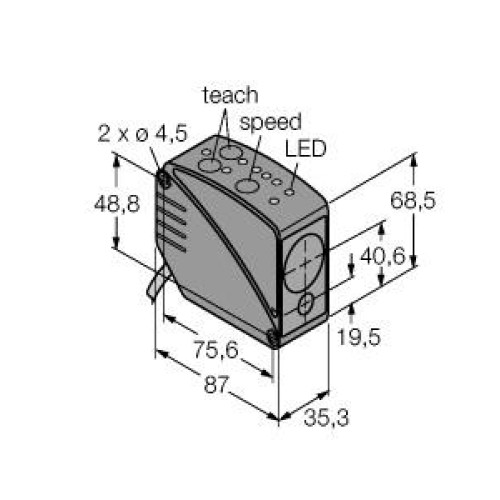

Height of sensor -
68.5 Millimetre
Housing material -
Plastic
Laser protection class -
Class 2
Length of sensor -
87 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Setting procedure -
Teach-In
Supply voltage -
12 Volt
Switching frequency -
1000 Hertz
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Width sensor -
35.3 Millimetre
