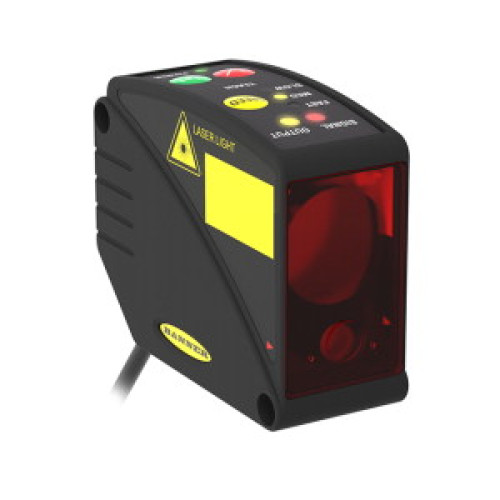

LT3 Series: Diffuse T.O.F. Laser Distance Measurement, Range: 0.3-5.0 m, Input: 12-24 V dc, Analog Output: 0-10 V, Discrete Output

Manufacturer's No: LT3NU     Manufacturer: Turck Banner
LT3 Series: Diffuse T.O.F. Laser Distance Measurement, Range: 0.3-5.0 m, Input: 12-24 V dc, Analog Output: 0-10 V, Discrete Output: NPN, 2 m (6.5 ft) Cable

Availability On Request

£2,026.13
  • Photoelectric Sensor
  • Diffuse-Mode Laser Sensor with Runtime Measurement
  • Switching and Analog Output
  • Operating Voltage: 12-24 VDC
  • Max. Range: 5000 mm
  • Cable Length: 2 m, 7-wire
  • Indication of Signal Intensity
  • Protection Class: IP67
  • Measuring Range: 5 m (distance to white object)
  • 3 Adjustable Response Times for Switching Output

Read more

  • Hysteresis and Measuring Range Independently Adjustable
  • Edge of Analog Output Invertible


Product

Manufacturer Material ID -
LT3NU
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

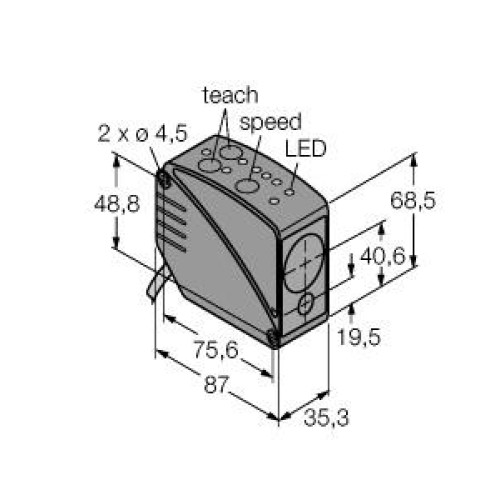

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
68.5 Millimetre
Housing material -
Plastic
Laser protection class -
Class 2
Length of sensor -
87 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Setting procedure -
Teach-In
Supply voltage -
12 Volt
Switching frequency -
1000 Hertz
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Width sensor -
35.3 Millimetre
