LT7 Series: Laser Diffuse Time-of-Flight Sensor, Range: 500 - 10 m, 18-30 V dc, Outputs: Discrete 2 PNP Analog 4-20 mA RS-422 or S

Manufacturer's No: LT7PIDQ     Manufacturer: Turck Banner
LT7 Series: Laser Diffuse Time-of-Flight Sensor, Range: 500 - 10 m, 18-30 V dc, Outputs: Discrete 2 PNP Analog 4-20 mA RS-422 or SSI, M16 12-pin QD

Availability Available to order

£3,520.56
  • Photoelectric Sensor, Diffuse-Mode Laser Sensor
  • Runtime Measurement
  • Switching and Analog Output
  • Operating voltage: 18-30 VDC
  • Max. range: 10000 mm
  • Male M16 x 0.75, 12-pin
  • Laser class 1, infrared, 900 nm
  • Alignment aid with visible red laser class 2, 650 nm
  • LCD display
  • Indication of signal intensity

Read more

  • Hysteresis and measuring range independently adjustable
  • Edge of analog output invertible
  • Alarm output
  • Serial interface: RS422 or SSI compatible


Product

Manufacturer Material ID -
LT7PIDQ
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

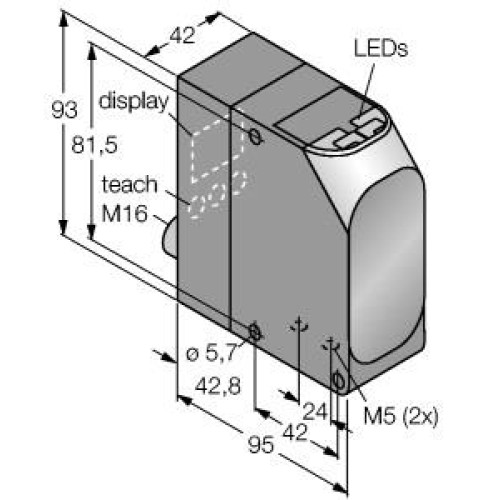

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
93 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
95 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Setting procedure -
Manual adjustment
Standard for interfaces -
SSI
Supply voltage -
18 Volt
Switching frequency -
400 Hertz
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Plug-in connection
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
42 Millimetre
