7TCA091140R0541

LED 2W LTC W/FORCE WHT/OPL

Manufacturer's No: LTCWWA1LS1     Manufacturer: ABB
LED 2W LTC W/FORCE WHT/OPL

Availability Back Order

£228.68

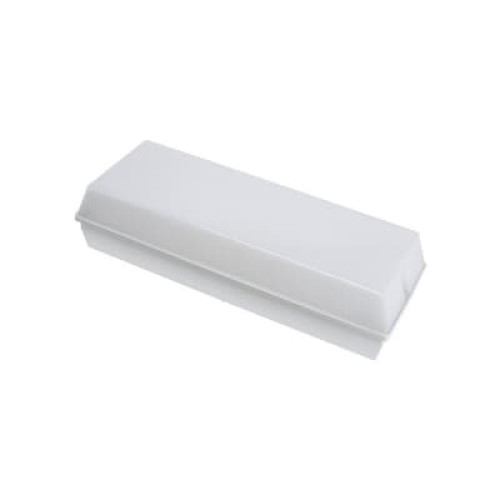

  • Weatherforce Luminaire with LED 2W LTC W/FORCE WHT/OPL
  • Lamp Type: 1 LED 2W
  • Lamp Output: 207 Lumens
  • Input Voltage: 220-240V AC, 50/60Hz
  • Operating Voltage: 230V
  • Operating Temperature: 0-40°C


Product

Manufacturer Material ID -
LTCWWA1LS1
Net Weight -
1.87kg

Additional Product Information

Commodity Code -
9405616000
Country of Origin -
GB
UNSPSC -
39101600

Technical Specification

Lamp included -
Colour temperature -
4000 Kelvin
Control gear -
LED driver constant current
Cover material -
Plastic opal
Degree of protection (IP rating) -
IP65
Function -
Escape route lighting/signage
Height/depth -
100 Millimetre
Housing colour -
White
Housing material -
Steel
Impact resistance (IK rating) -
IK10
Labelling type -
Sticker
Length -
400 Millimetre
Light distribution -
Diffuser
Light source included -
Light source type -
LED non-replaceable
Luminous flux in standby mode -
207 Lumen
Maximum system power -
4.4 Watt
Monitoring equipment -
Safety module for monitoring (central feeded system)
Mounting method -
Wall surface mounted / ceiling surface mounting
Nominal voltage -
220 Volt
Number of lighting heads -
1
Power factor -
0.92
Power supply system -
Central (central battery)
Protection class -
I
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Type of cabling -
Ending
Type of indicator -
Single-sided
Viewing distance -
24 Metre
Voltage type -
AC
Width -
140 Millimetre
