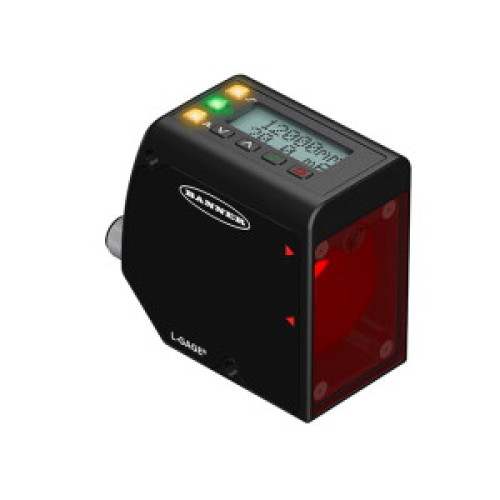

Laser Diffuse Time-of-Flight Sensor, Range: 50-12000, Input: 12-30 V dc, Output: Analog: 4-20 mA, Class 2 Laser, Discrete: NPN/PNP

Manufacturer's No: LTF12IC2LDQ     Manufacturer: Turck Banner
Laser Diffuse Time-of-Flight Sensor, Range: 50-12000, Input: 12-30 V dc, Output: Analog: 4-20 mA, Class 2 Laser, Discrete: NPN/PNP configurable, Integral QD

Availability On Request

POA
  • Photoelectric Sensor, Diffuse-Mode Laser Sensor
  • Runtime Measurement
  • Analog Output: 4-20 mA
  • Operating Voltage: 12-30 VDC
  • Max. Range: 12000 mm
  • Range: 0.05-12 m
  • Laser Class 2, red, 660 nm
  • Resolution: 0.3-3 mm
  • 2-line, 8-segment display
  • M12 x 1 male connector, rotatable, 5-pin

Read more

  • PNP/NPN-switching output, switchable
  • Compliant with IEC 60825-1:2007


Product

Manufacturer Material ID -
LTF12IC2LDQ
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
US
UNSPSC -
39121527

Technical Specification

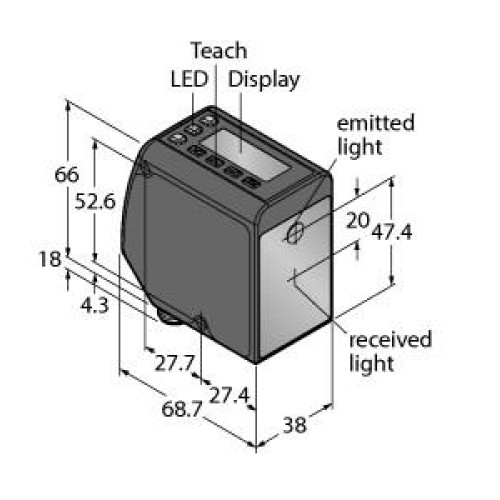

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
56 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
77 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Supply voltage -
12 Volt
Switching frequency -
250 Hertz
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
26 Millimetre
