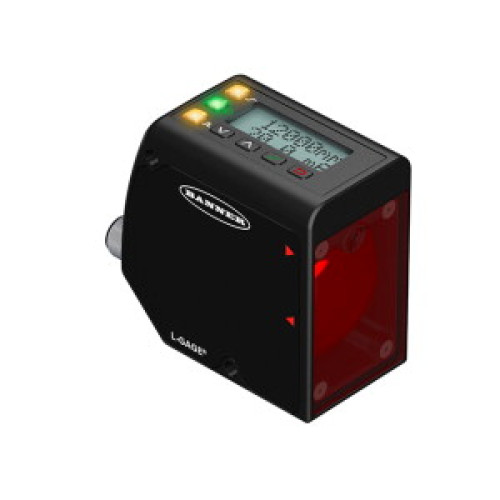

Laser Diffuse Time-of-Flight Sensor, Range: 50-12000, Input: 12-30 V dc, Output: Analog: 0-10 V, Class 2 Laser, Discrete: NPN/PNP

Manufacturer's No: LTF12UC2LDQ     Manufacturer: Turck Banner
Laser Diffuse Time-of-Flight Sensor, Range: 50-12000, Input: 12-30 V dc, Output: Analog: 0-10 V, Class 2 Laser, Discrete: NPN/PNP configurable, M12 Integral QD

Availability On Request

£679.61
  • Photoelectric Sensor, Diffuse-Mode Laser Sensor
  • Runtime Measurement
  • Analog Output
  • Operating Voltage: 12-30 VDC
  • Max. Range: 12000 mm
  • Display: 2-line, 8-segment
  • Connector: M12 × 1 male, rotatable, 5-pin
  • Range: 0.05-12 m
  • Laser Class 2, red, 660 nm
  • Resolution: 0.3-3 mm

Read more

  • PNP/NPN-Switching Output, switchable
  • Analog Output Range: 0-10 V


Product

Manufacturer Material ID -
LTF12UC2LDQ
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
41111926

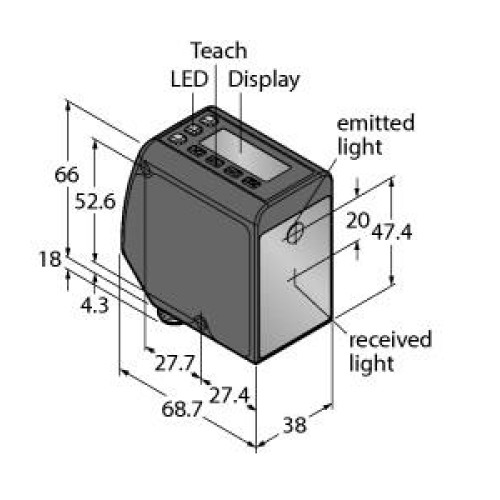

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
56 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
77 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Supply voltage -
12 Volt
Switching frequency -
250 Hertz
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
26 Millimetre
