3071817

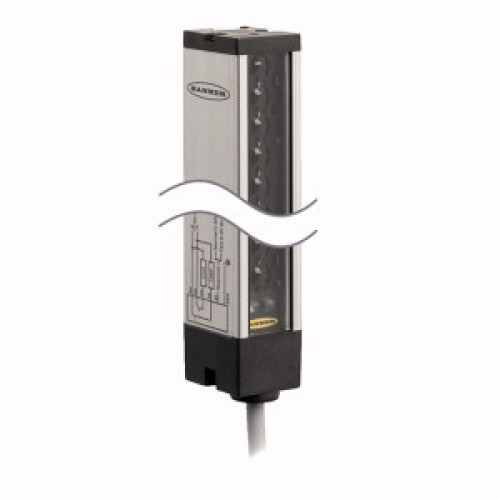

LX Series: Receiver, Standard Range, Range: Normal 300 - 2 m, Input 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 150 (6 in) M12 Pigt

Manufacturer's No: LX24RQ     Manufacturer: Turck Banner
LX Series: Receiver, Standard Range, Range: Normal 300 - 2 m, Input 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 150 (6 in) M12 Pigtail QD

Availability On Request

£1,028.04
  • Photoelectric Sensor
    • Switching Light Screen
    • Receiver
    • Operating voltage: 10-30 VDC
    • Max. range: 2000 mm
    • Cable length: 0.2 m
    • Cable with male end M12 × 1, 5-pin, 0.15 m
    • Protection class: IP65
    • Scan field: 599 mm
    • Minimum target size: 9.5 mm
    • Programmable connection for reduced sensing range
    • 2 slot nuts with M5 screws for wall mounting included


Product

Manufacturer Material ID -
LX24RQ
Net Weight -
0.75kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Height of sensor -
646.8 Millimetre
Length of sensor -
31.8 Millimetre
Reaction time -
6.4 Millisecond
Resolution of the light curtain -
9.5 Millimetre
Safety field height -
599 Millimetre
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP/NPN
Width sensor -
25.4 Millimetre
Turck Banner

Availability On Request

£1,028.04
