3002664

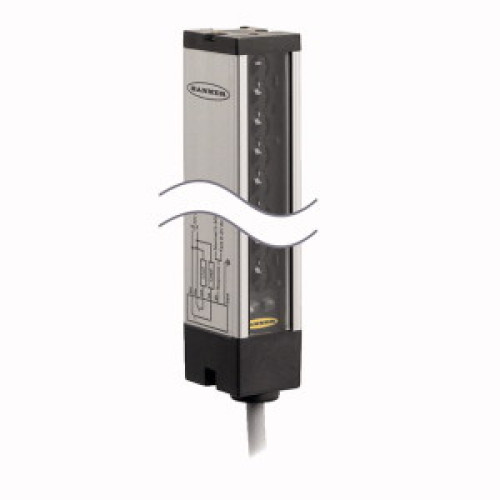

LX Series: Receiver, Standard Range, Range: Normal 300 - 2 m, Input 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Manufacturer's No: LX3R     Manufacturer: Turck Banner
LX Series: Receiver, Standard Range, Range: Normal 300 - 2 m, Input 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability On Request

£322.11
  • Photoelectric Sensor
    • Switching Light Screen
    • Receiver
    • Operating Voltage: 10-30 VDC
    • Max. Range: 2000 mm
    • Cable Length: 2 m
    • Cable: 5-wire, 2 m
    • Protection Class: IP65
    • Scan Field: 67 mm
    • Minimum Target Size: 9.5 mm
    • Programmable connection for reduced sensing range
    • Includes 2 slot nuts with M5 screws for wall mounting


Product

Manufacturer Material ID -
LX3R
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius

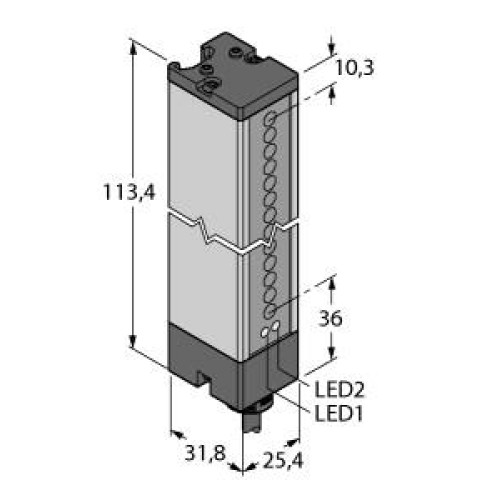

Height of sensor -
113.4 Millimetre
Length of sensor -
31.8 Millimetre
Reaction time -
0.8 Millisecond
Resolution of the light curtain -
9.5 Millimetre
Safety field height -
67 Millimetre
Type of electric connection -
Cable
Type of switching output of the OSSD -
PNP/NPN
Width sensor -
25.4 Millimetre
Turck Banner

Availability On Request

£322.11
