3002670

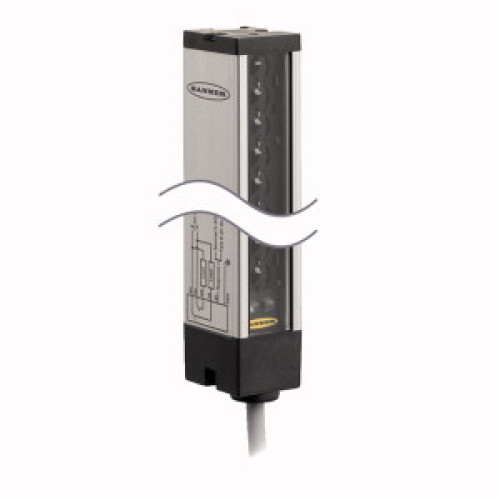

LX Series: Emitter, Standard Range, Range: Normal 300 - 2 m, Input 10-30 V dc, Output: No output, 2 m (6.5 ft) Cable

Manufacturer's No: LX6E     Manufacturer: Turck Banner
LX Series: Emitter, Standard Range, Range: Normal 300 - 2 m, Input 10-30 V dc, Output: No output, 2 m (6.5 ft) Cable

Availability On Request

£298.52
  • Photoelectric Sensor
  • Switching Light Screen
  • Emitter
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 2 m
  • Cable: 5-wire, 2 m
  • Protection Class: IP65
  • Scan Field: 143 mm
  • Minimum Target Size: 9.5 mm

Read more

  • Programmable connection for reduced sensing range
  • Includes 2 slot nuts with M5 screws for wall mounting


Product

Manufacturer Material ID -
LX6E
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius

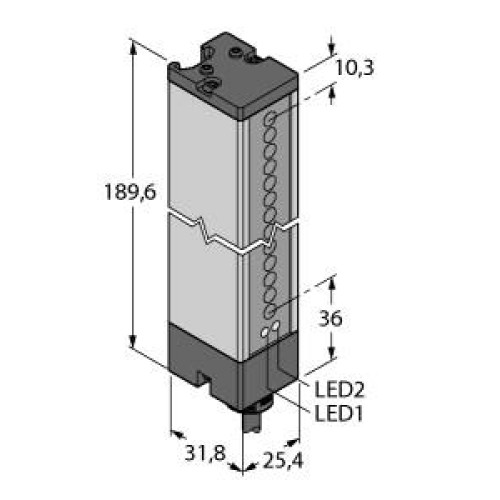

Height of sensor -
189.6 Millimetre
Length of sensor -
31.8 Millimetre
Reaction time -
1.6 Millisecond
Resolution of the light curtain -
9.5 Millimetre
Safety field height -
143 Millimetre
Type of electric connection -
Cable
Wavelength of the sensor -
880 Nanometre
Width sensor -
25.4 Millimetre
Turck Banner

Availability On Request

£298.52
