3077203

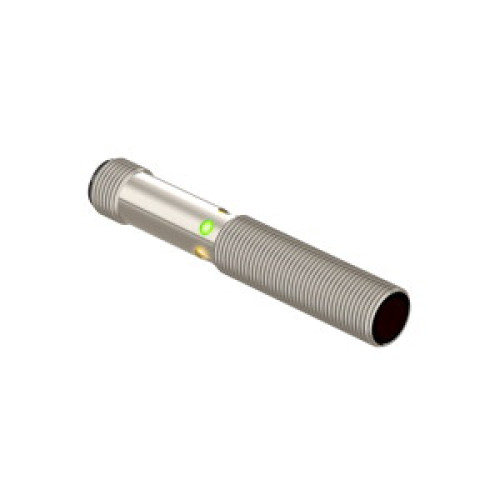

M12 Series: Emitter; Range: 5 m; Input 1030V dc; Output: No output; Integral EuroStyle QuickDisconnect Connector;

Manufacturer's No: M12EQ8
M12 Series: Emitter; Range: 5 m; Input 1030V dc; Output: No output; Integral EuroStyle QuickDisconnect Connector;

Availability Back Order

£81.67
  • M12 Series Emitter
  • Range: 5 meters
  • Input: 10-30V DC
  • Output: None
  • Integral EuroStyle QuickDisconnect Connector


Product

Manufacturer Material ID -
M12EQ8
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67

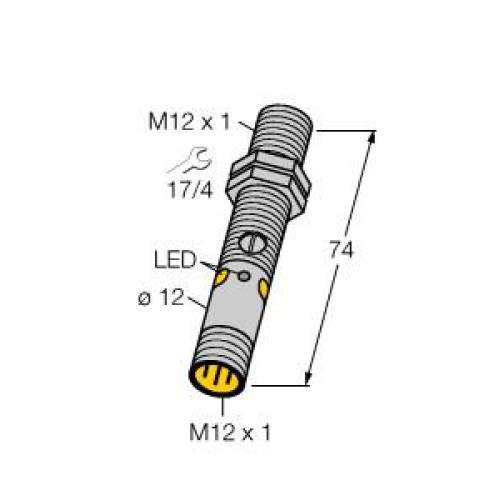

Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
74 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
5000 Millimetre
Rated switching distance -
5000 Millimetre
Reaction time -
0.625 Millisecond
Setting procedure -
Other
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Wavelength of the sensor -
660 Nanometre


Availability Back Order

£81.67
