3078230

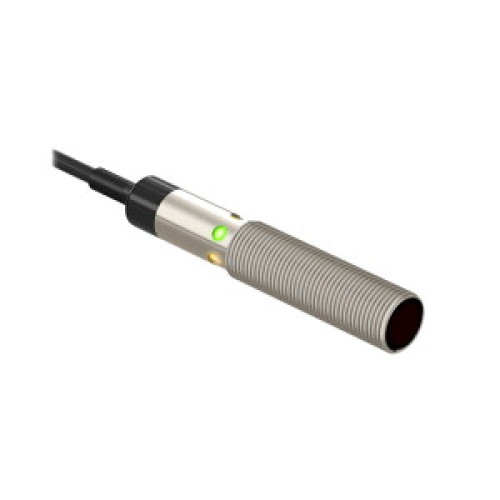

M12 Series: Fixed Field (Red), Range: 75, Input 10-30 V dc, Output: Complementary Solid-State NPN, 2 m (6.5 ft) Cable

Manufacturer's No: M12NFF75     Manufacturer: Turck Banner
M12 Series: Fixed Field (Red), Range: 75, Input 10-30 V dc, Output: Complementary Solid-State NPN, 2 m (6.5 ft) Cable

Availability On Request

£138.83
  • Photoelectric sensor in diffuse mode
  • Fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 75 mm
  • Cable length: 2 m, PVC material, 4-wire
  • Protection classes: IP67/IP68
  • Metal housing with LED visible all around
  • Indication of insufficient excess gain
  • NPN switching output, changeover


Product

Manufacturer Material ID -
M12NFF75
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67

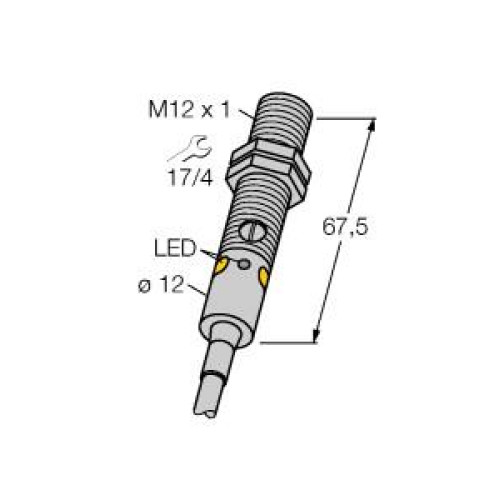

Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
67.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
75 Millimetre
Rated switching distance -
75 Millimetre
Reaction time -
0.5 Millisecond
Setting procedure -
Other
Switching frequency -
1000 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
680 Nanometre
Turck Banner

Availability On Request

£138.83
