3077179

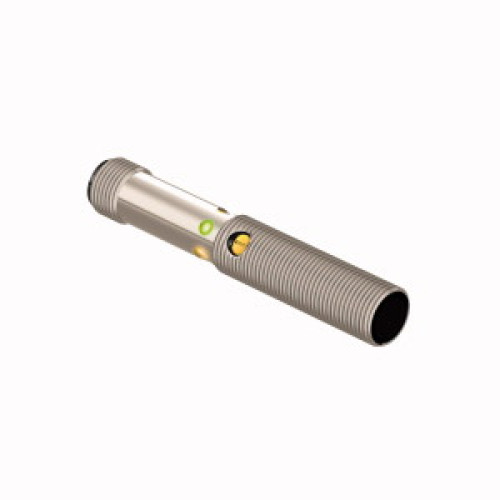

M12 Series: Diffuse (Red), Range: 400, Input 10-30 V dc, Output: Complementary Solid-State PNP, M12 Integral QD

Manufacturer's No: M12PDQ8     Manufacturer: Turck Banner
M12 Series: Diffuse (Red), Range: 400, Input 10-30 V dc, Output: Complementary Solid-State PNP, M12 Integral QD

Availability On Request

£112.51
  • Type: Photoelectric Sensor, Diffuse Mode
  • Operating Voltage: 10-30 VDC
  • Max. Range: 400 mm
  • Connector: Male M12 × 1, 4-pin
  • Protection Classes: IP67 / IP68
  • Housing Material: Metal
  • LED Indicator: All-round visible
  • Features: Indication of insufficient excess gain
  • Sensitivity Adjustment: Via potentiometer
  • Output: PNP switching output, complementary contact


Product

Manufacturer Material ID -
M12PDQ8
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67

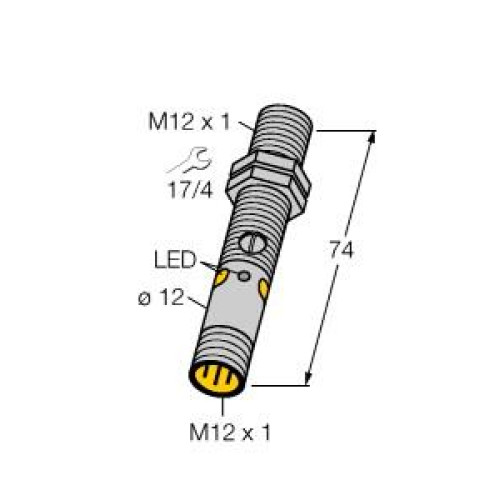

Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
74 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
400 Millimetre
Reaction time -
0.5 Millisecond
Setting procedure -
Other
Switching frequency -
1000 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
660 Nanometre
Turck Banner

Availability On Request

£112.51
