3058432

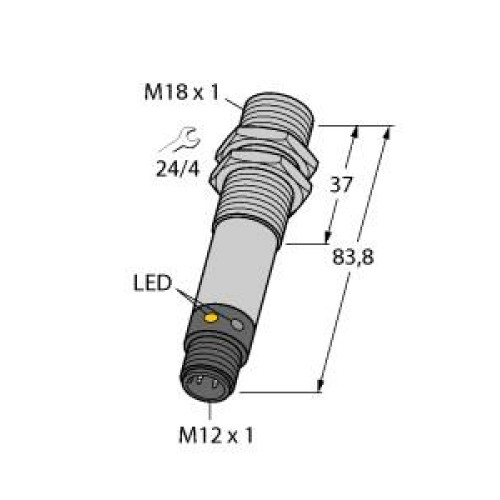

EZ-BEAM M18 Series: Fixed Field, Range: 25, Input: 10-30 V dc, Complementary NPN, 4-pin M12 Integral QD

Manufacturer's No: M18SN6FF25Q     Manufacturer: Turck Banner
EZ-BEAM M18 Series: Fixed Field, Range: 25, Input: 10-30 V dc, Complementary NPN, 4-pin M12 Integral QD

Availability On Request

£167.86
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 25 mm
  • M12 x 1 male connector, 4-pin
  • Protection classes: IP67/IP69K
  • Ambient temperature range: -40°C to +70°C
  • Metal housing
  • NPN switching output, changeover


Product

Manufacturer Material ID -
M18SN6FF25Q
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
83.8 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
25 Millimetre
Rated switching distance -
25 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Wavelength of the sensor -
880 Nanometre
Turck Banner

Availability On Request

£167.86
